02 Web Knowledge (WIFI Configuration)
Introduction
This section will describe how to connect Jetson to the network and to regular network configurations.
Wi-Fi Configuration
Connect Wi-Fi
Mode 1: GUI Connection

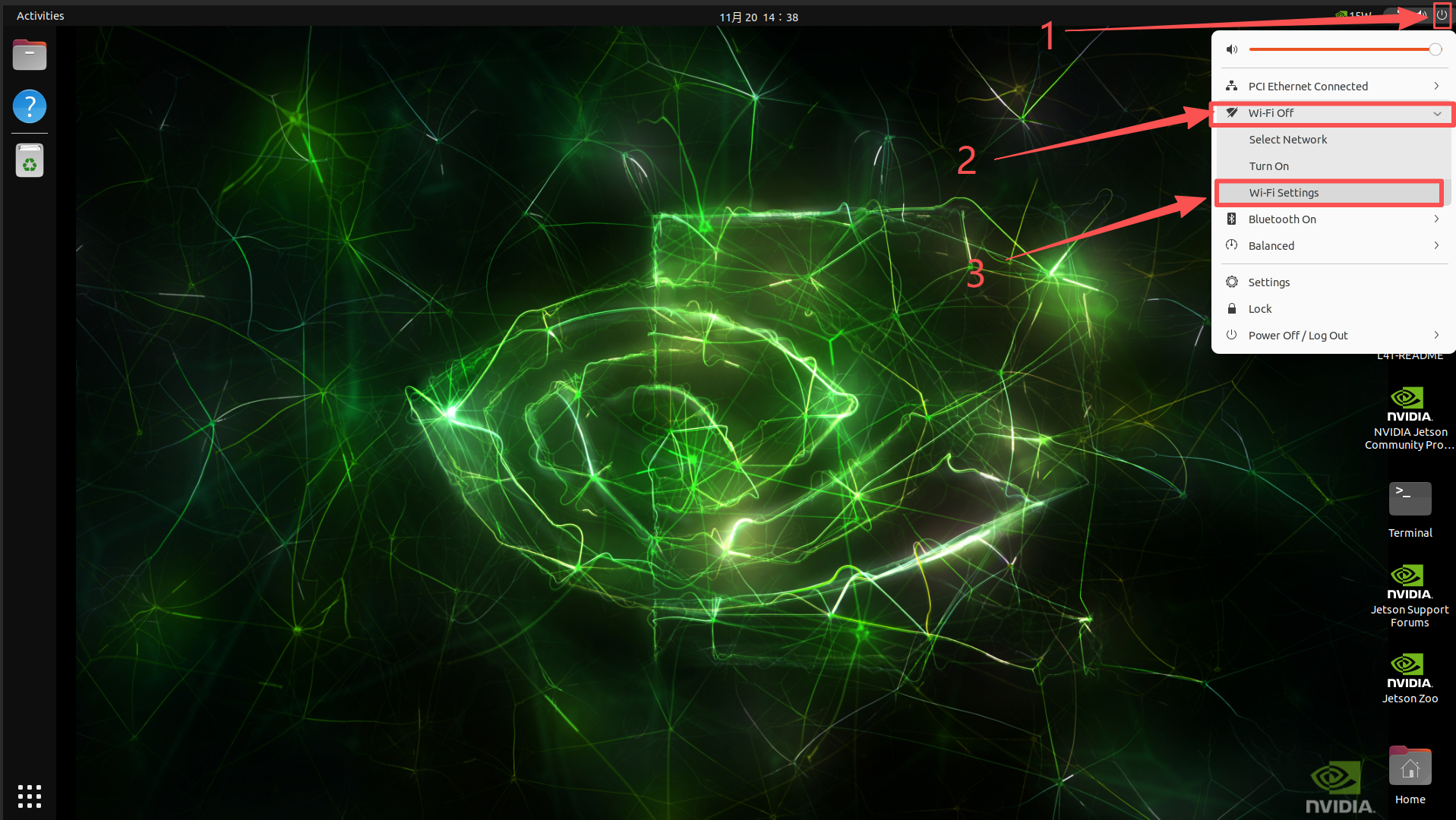

Enter the Jeton system desktop and click the power icon at the top right corner - >Wi-Fi icon - >Wi-Fi Setting.

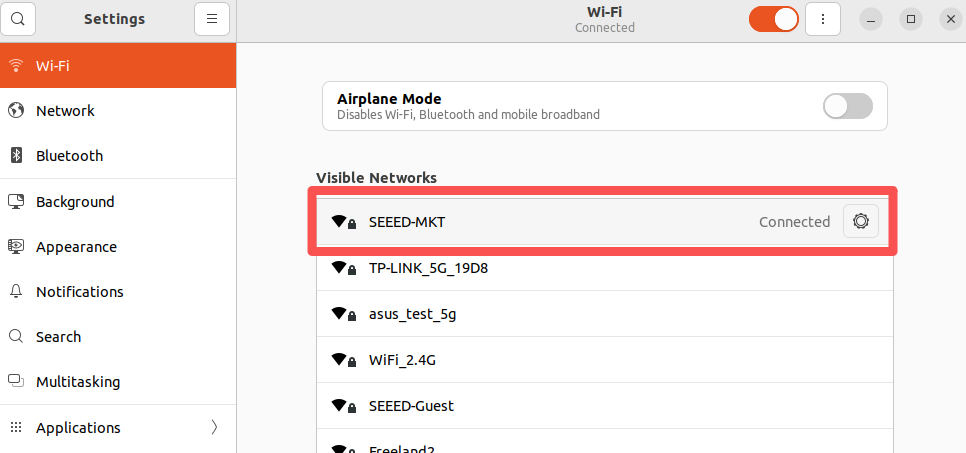

Select the WiFi that you want to connect to, and check if the wireless card is equipped with antennas or antennas if both are scanned.

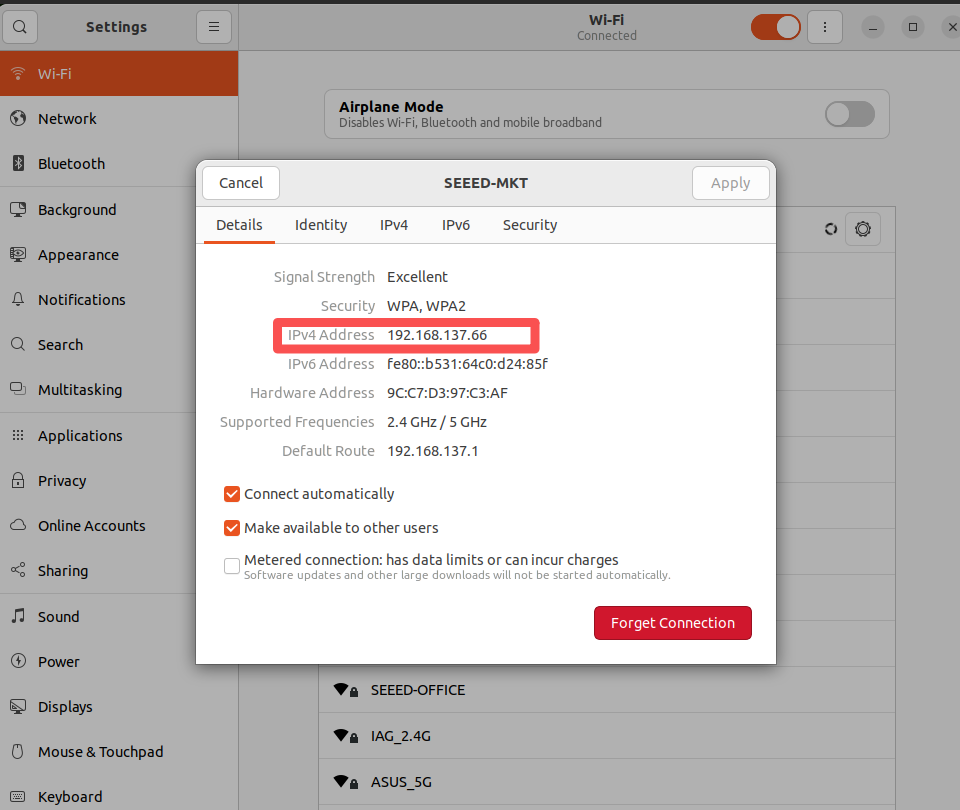

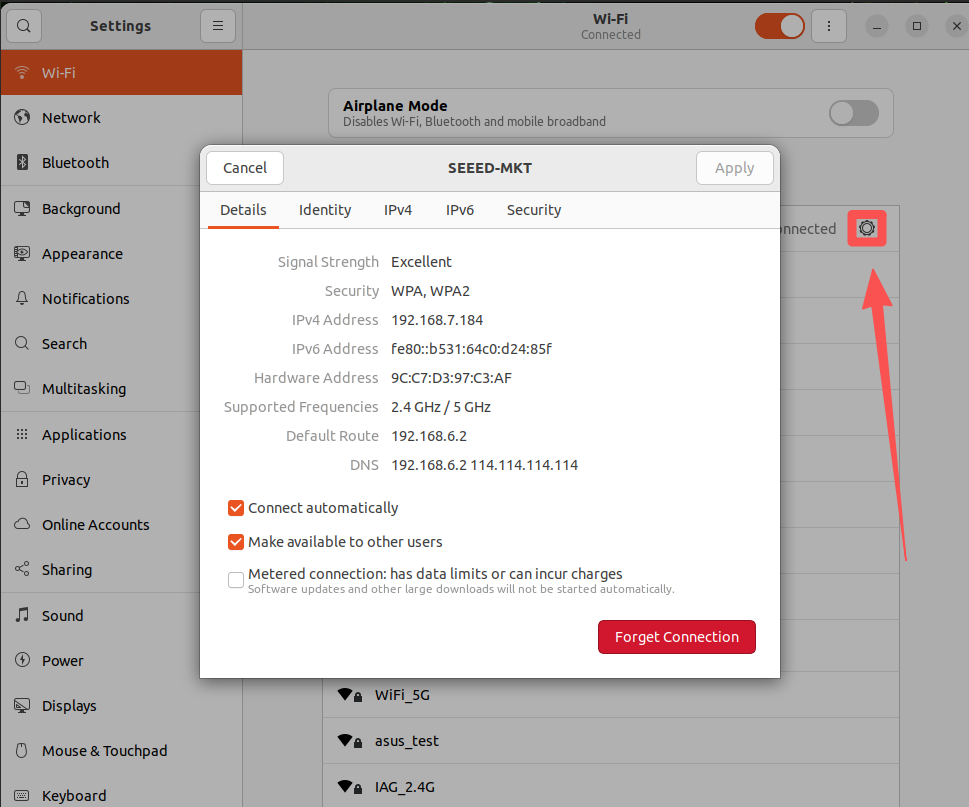

Click the connected WiFi settings icon to view WiFi information.

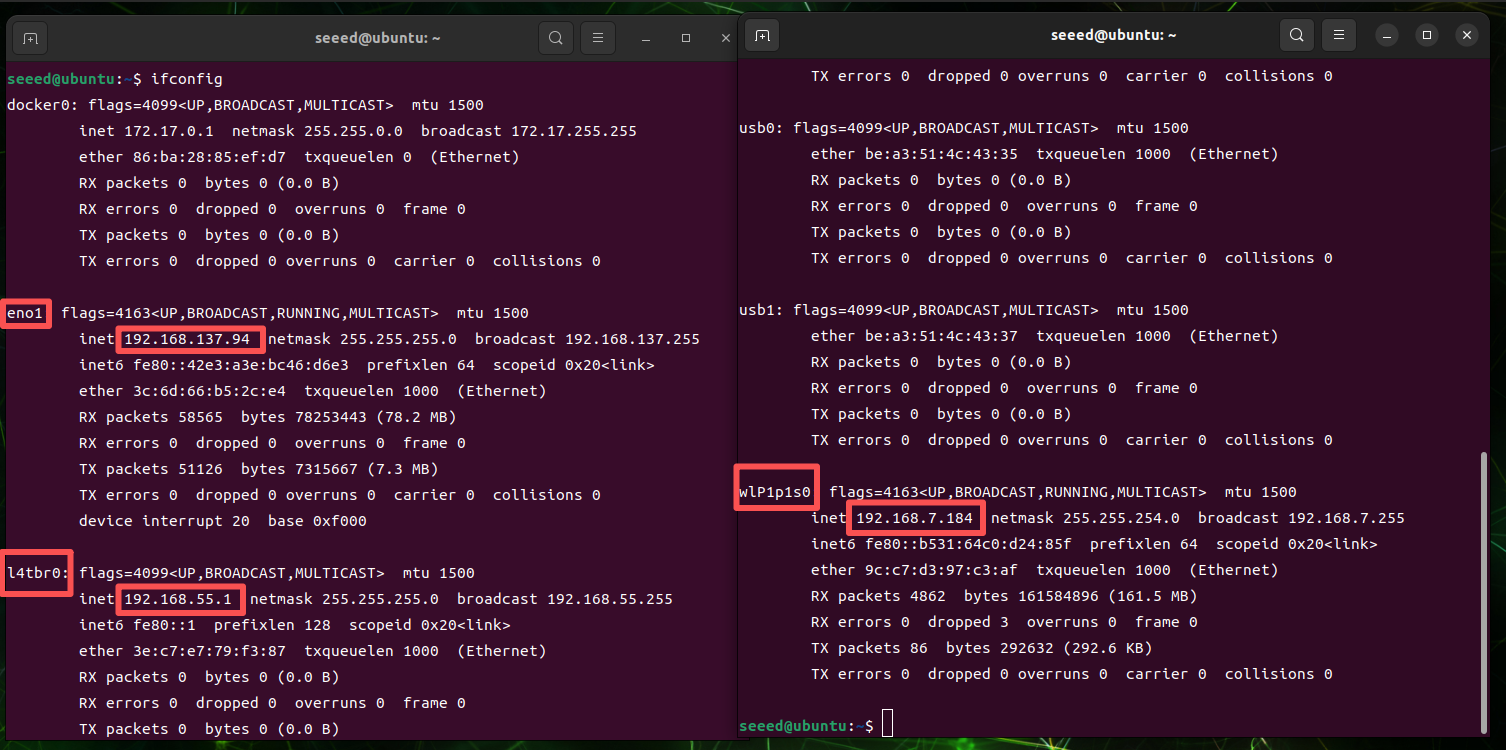

View the IP addresses of all network connections and open the terminal to enter the following commands:
ifconfig
If the above figure is an IP address for a web-based interface, l4tbr0 is an IP address assigned to Jetson for the Type interface and wlP1p1s0 is an IP address for the WiFi interface,
Mode 2: Command line connections

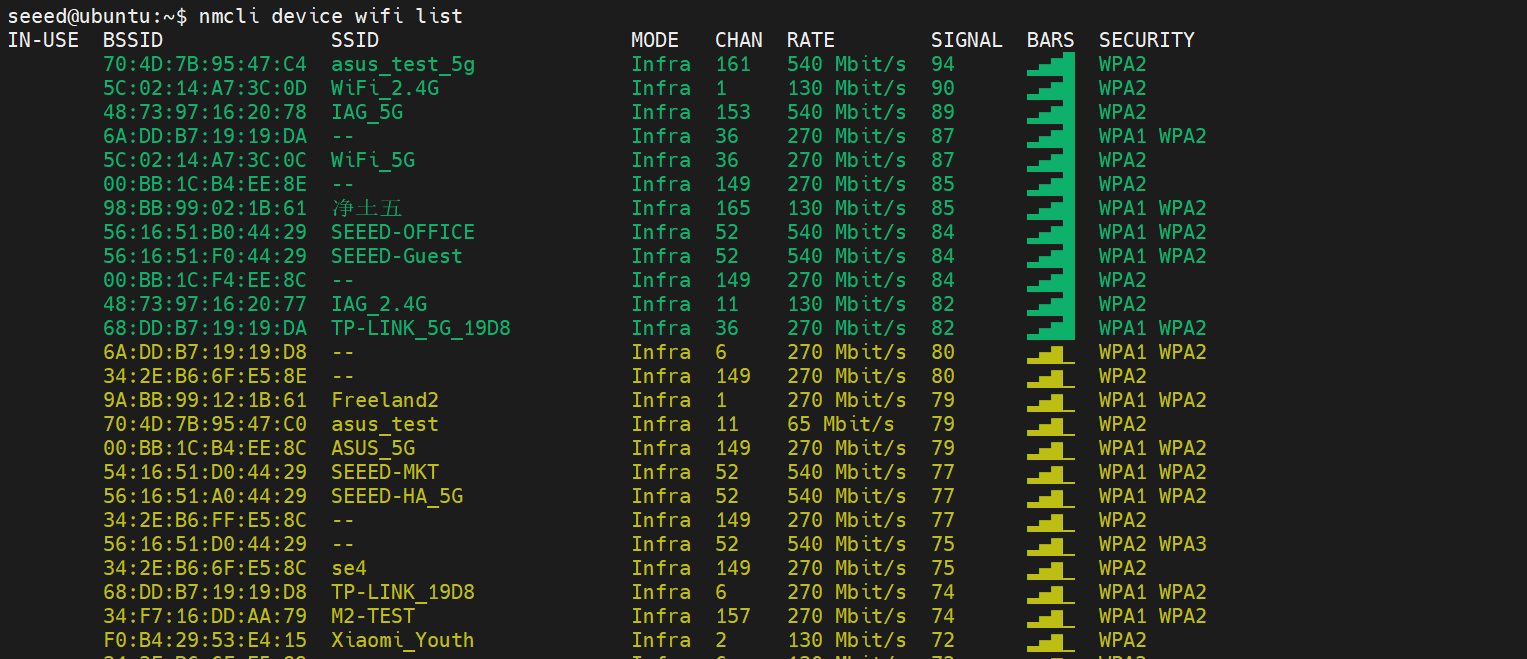

Open the terminal to enter the following command to query the wfi signal in the current environment:
nmcli device wifi list
Connect WiFi with the command below

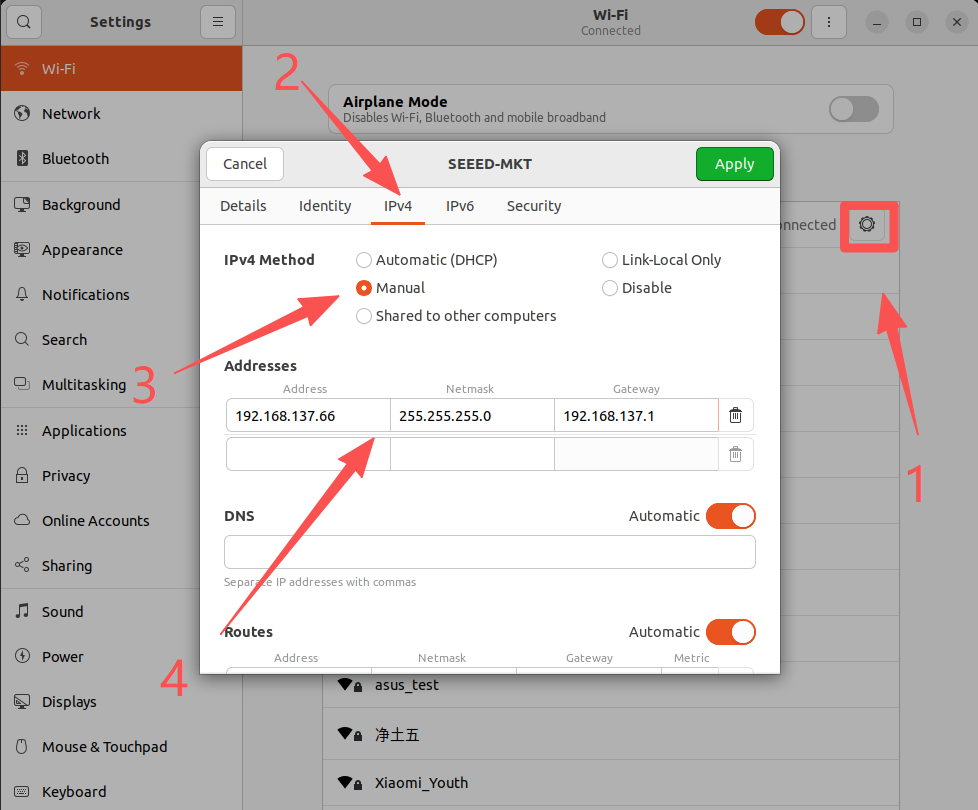

nmcli device wifi connect "WiFi-Name" password "Password"Set static IP
Set Options for Open Wi-Fi
Address: Fill in an IP address that requires a fixed IP address and an assignable IP address range Netmask: Fill in 255.255.255.0 Gateway: Fill in WiFi default gateway address
Reconnecting WiFi is effective.
Wi-Fi Hot
In development, it is sometimes necessary to connect the Jetson hotspot to control and debug the program. Here's how to turn on the hot spots.
Attention, need a wireless card to support the AP working mode!

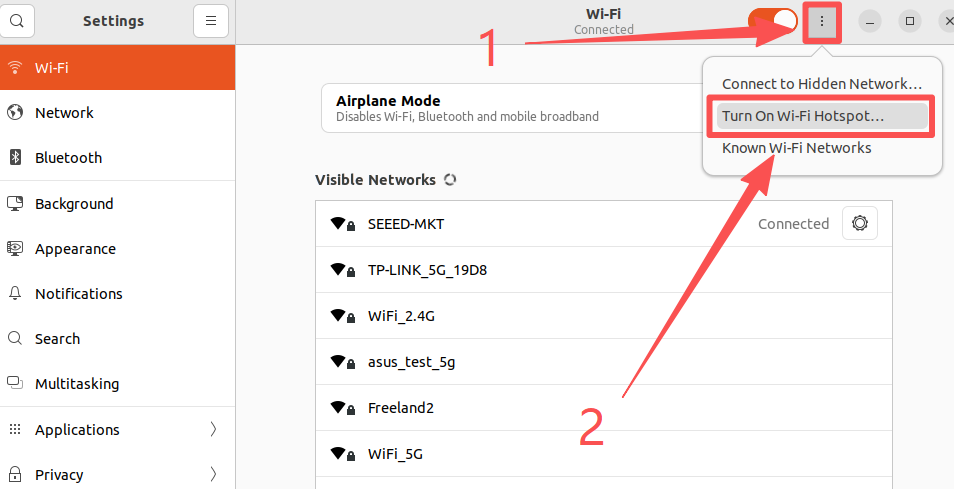

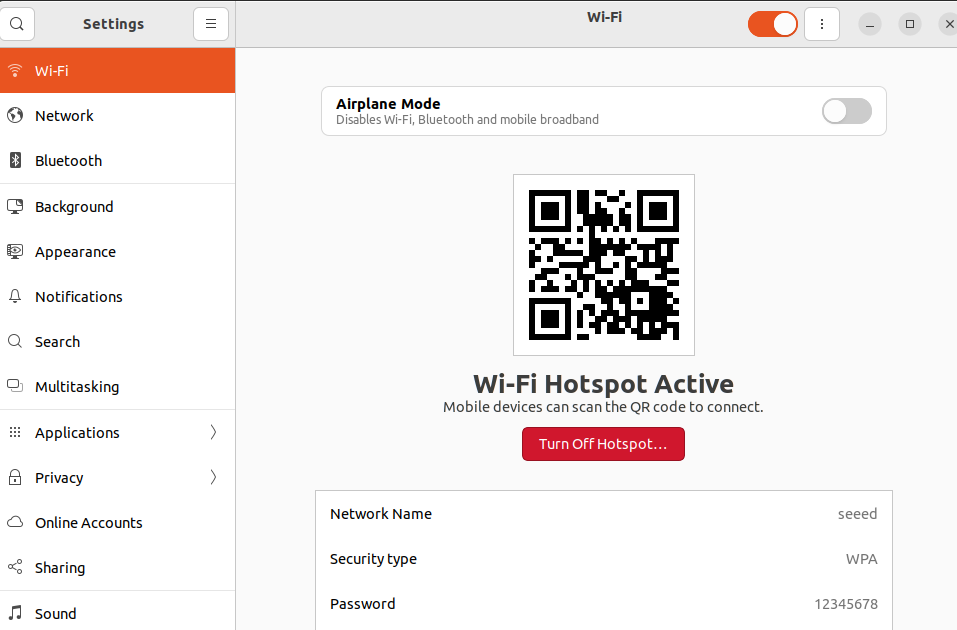

Open Wi-Fi Hotspot

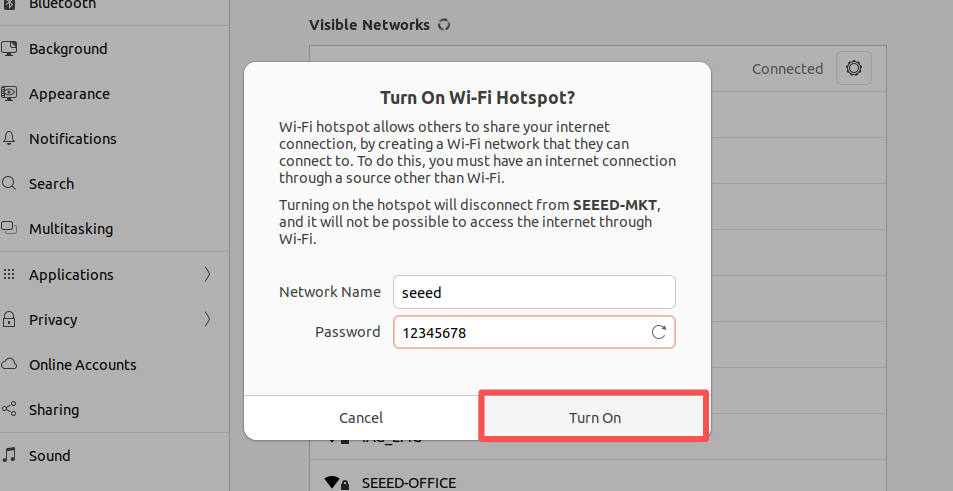

Configure hot spots and open them

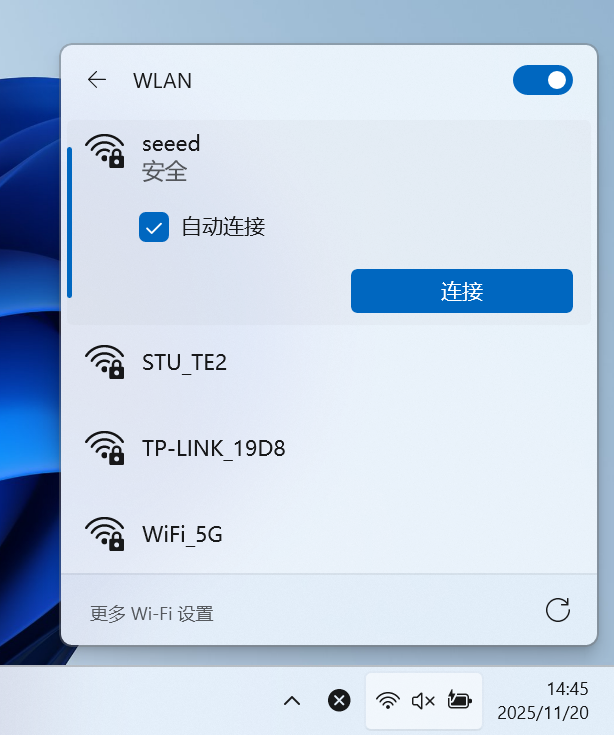

The Hotspot Connection opened by Jetson can be detected normally on Windows PC

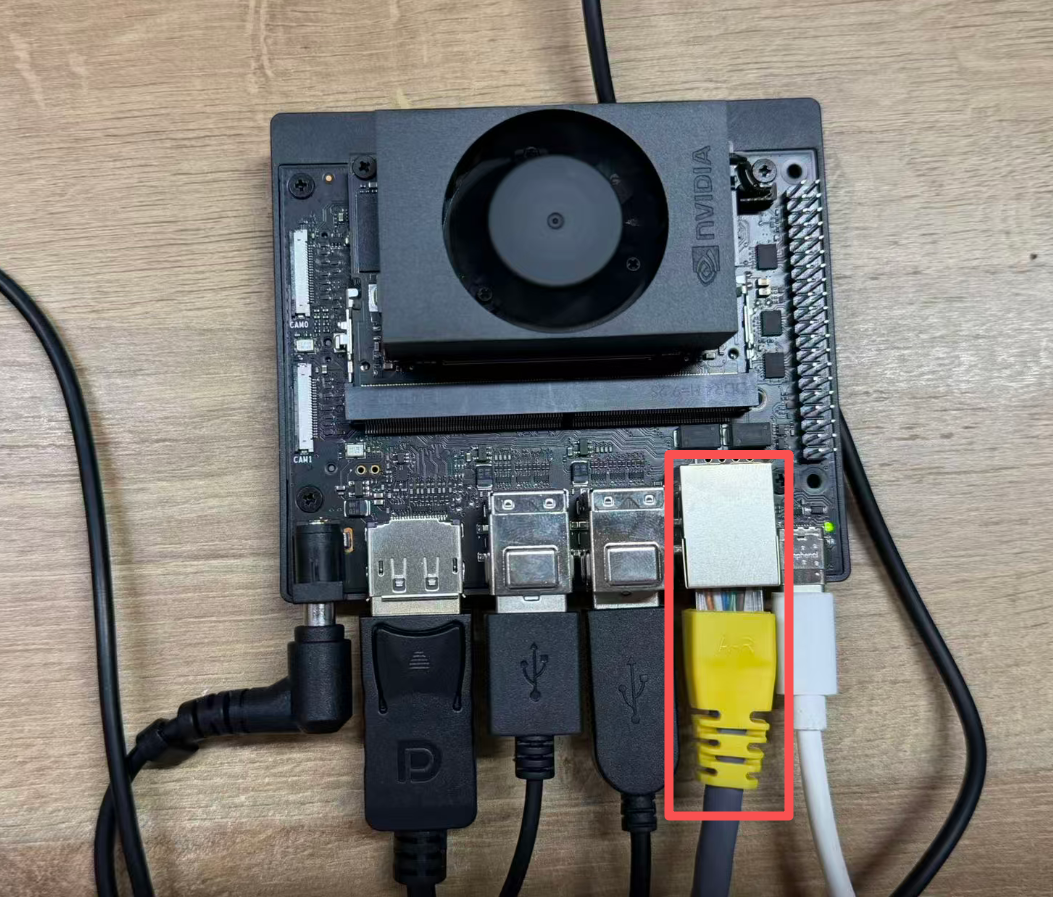

Wireless connection
Just connect the network to Jetson's portal.
