4.6 Train and Deploy Your Own Vision Model

Introduction

YOLO26 is the latest generation of the YOLO family, designed for real-time, edge-ready vision AI. It is built to be faster, lighter, and easier to deploy, while still delivering strong accuracy for tasks such as object detection, segmentation, classification, and pose estimation. Compared with earlier YOLO models, YOLO26 places a stronger focus on efficient deployment and end-to-end inference, which makes it especially suitable for edge devices and practical applications.

YOLO26 performance plots

In this chapter, we will introduce how to quickly train and deploy your own advanced detection model on reComputer, so you can move from data to a working real-world AI application with an efficient and modern workflow.

Quick experience

Step 1: Define the Task Clearly

A strong project begins with a clear question.

Examples:

  • detect helmets and persons
  • detect occupied parking spaces
  • detect pallets and forklifts

For the convenience of demonstration, we have provided a script that can assist us in completing the process from data collection to model deployment.

Prerequisites: Install the required dependencies:

bash
pip install ultralytics opencv-python pillow pyyaml

🚀Just give it a try and run it yourself!

bash
cd 4-Computer-Vision/4.6-Train-and-Deploy-Your-Own-Vision-Model/code
python yolo_end_to_end.py

Step 2: Collect Data

Connect a camera to your device, select the target you want to detect, and collect the appropriate dataset images.

capture_picture

Step 3: Annotate the Data

For detection, annotation usually means drawing bounding boxes and assigning class labels.

Use our tool and drag the mouse to mark the target you want to detect.

mark_img

Step 4: Train a Model

Split your datasets and select a pretrain model to train.

The training set is used to teach the model by adjusting its parameters. The validation set is used during development to check how well the model is generalizing, compare different settings, and decide when to stop training. In short, dataset splitting helps us train the model, improve the model, and evaluate the model in a trustworthy way.

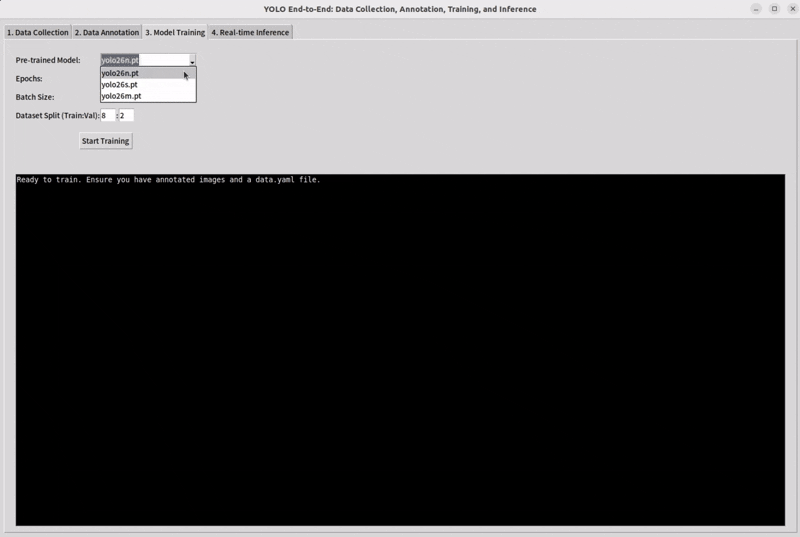

train

Training is the stage where the model learns from the dataset and gradually improves its predictions. Usually, we begin with a starting checkpoint, which means using a pretrained model instead of starting from zero. This helps the model learn faster and often gives better results.

Step 5: Inference

Select the model weights that have been trained previously and observe its performance.

infer

Note : If you want your model to perform better, you need to increase your dataset or perform data augmentation operations.

Common Misunderstandings

  • "A high metric always means the model is ready."
    • Real-world testing is still necessary.
  • "More data automatically means a better model."
    • More data helps only if it is relevant and well labeled.
  • "If training finishes, deployment is easy."
    • Deployment introduces speed, memory, and system constraints.

Exercises / Reflection

  1. Design a two-class object detection project that could be completed by a beginner.
  2. List five types of scene variation you would want in the dataset.
  3. Explain the difference between validation results and real deployment performance.
  4. After running a training job, inspect three failure cases and describe what kind of data might fix them.

Environment Setup

Before training YOLO models, set up your Python environment using the uv package manager:

Install uv

bash
curl -LsSf https://astral.sh/uv/install.sh | sh
source ~/.bashrc
uv --version

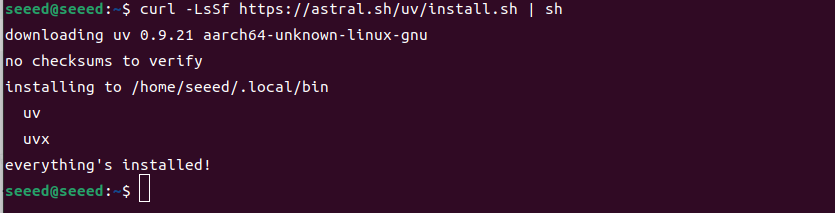

uv installation

Create Virtual Environment

bash
uv venv .yolo --python 3.10.12
source .yolo/bin/activate
python --version

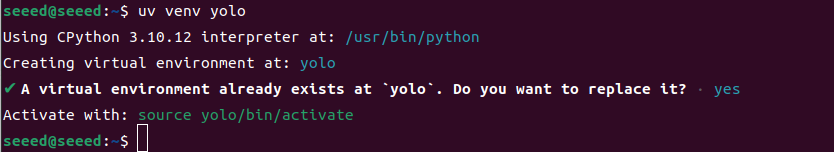

Virtual environment Activate environment

Install PyTorch (GPU)

bash
uv pip install torch --index-url https://pypi.jetson-ai-lab.io/jp6/cu126

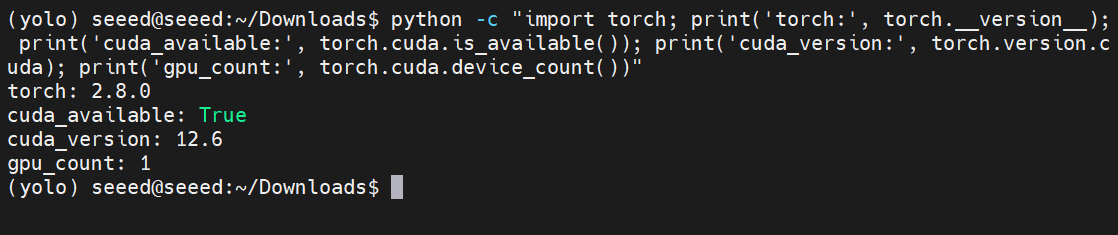

PyTorch verification

Note: Seeed's Jetson development kits come with pre-configured environments. Check if the .yolo environment already exists before creating a new one.

Install YOLO26/Ultralytics

bash
uv pip install ultralytics opencv-python pillow pyyaml

YOLO26 Task Examples

YOLO26 supports multiple computer vision tasks. Below are examples for each.

Object Detection

Detect and locate objects in images or video:

bash
cd 4-Computer-Vision/4.6-Train-and-Deploy-Your-Own-Vision-Model/code
python yolo_object_detection.py

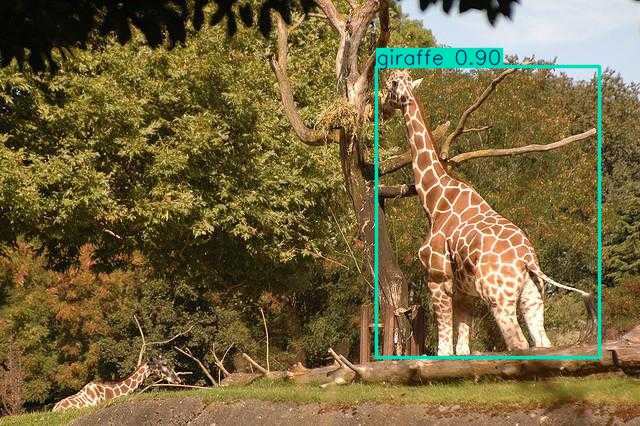

Object detection result

Instance Segmentation

Identify objects at the pixel level:

bash
cd 4-Computer-Vision/4.6-Train-and-Deploy-Your-Own-Vision-Model/code
python yolo_instance_segmentation.py

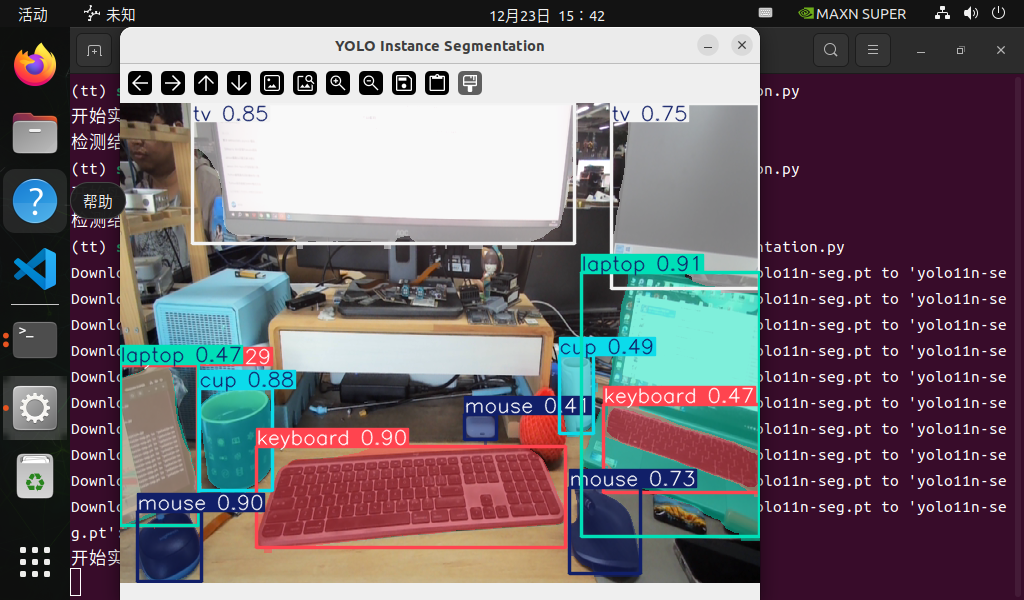

Instance segmentation

Pose Estimation

Detect human body keypoints:

bash
cd 4-Computer-Vision/4.6-Train-and-Deploy-Your-Own-Vision-Model/code
python yolo_pose_estimation.py

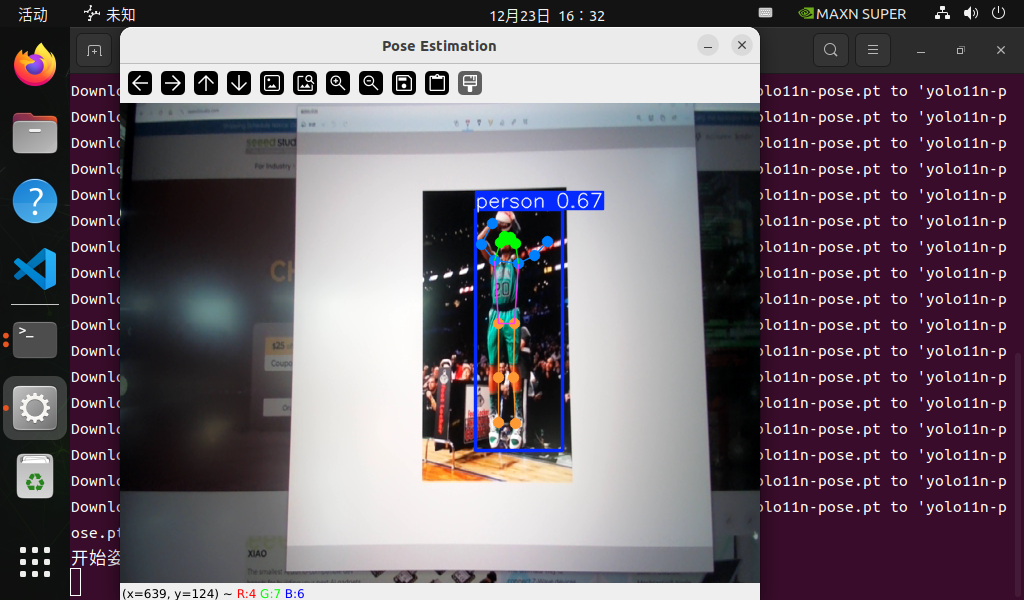

Pose estimation

Image Classification

Classify the main subject in an image:

bash
cd 4-Computer-Vision/4.6-Train-and-Deploy-Your-Own-Vision-Model/code
python yolo_image_classification.py

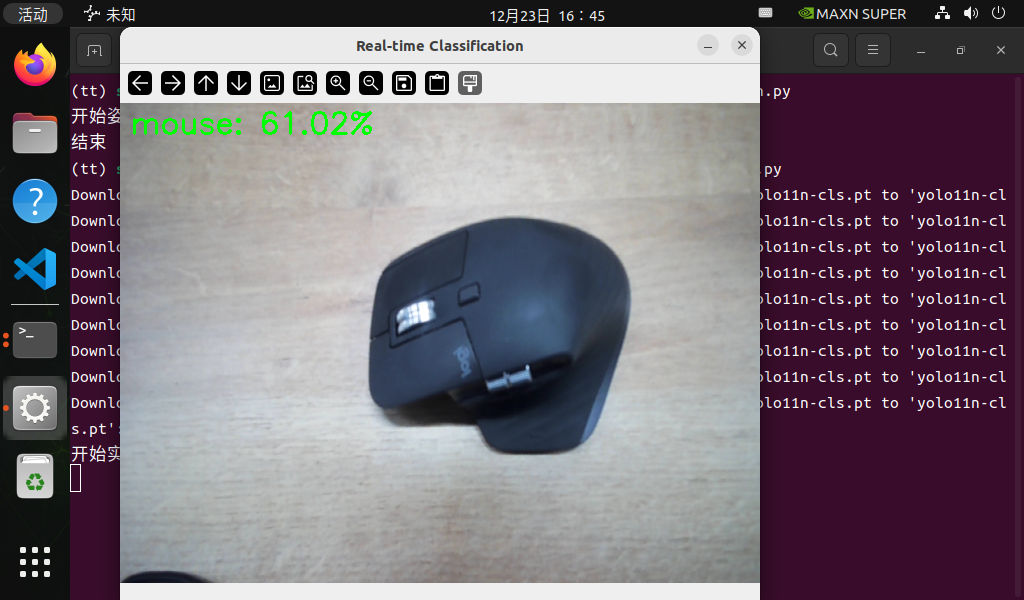

Image classification

Oriented Object Detection (OBB)

Detect objects with rotated bounding boxes:

bash
cd 4-Computer-Vision/4.6-Train-and-Deploy-Your-Own-Vision-Model/code
python yolo_obb_detection.py

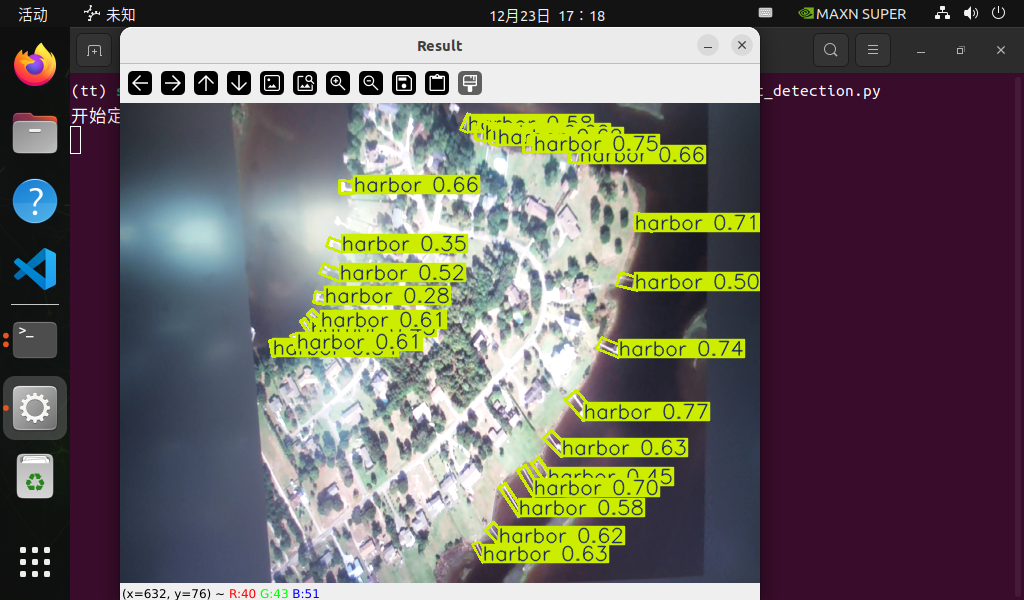

OBB detection

Model Training

Train a YOLO model on your custom dataset:

bash
cd 4-Computer-Vision/4.6-Train-and-Deploy-Your-Own-Vision-Model/code
python yolo_train.py

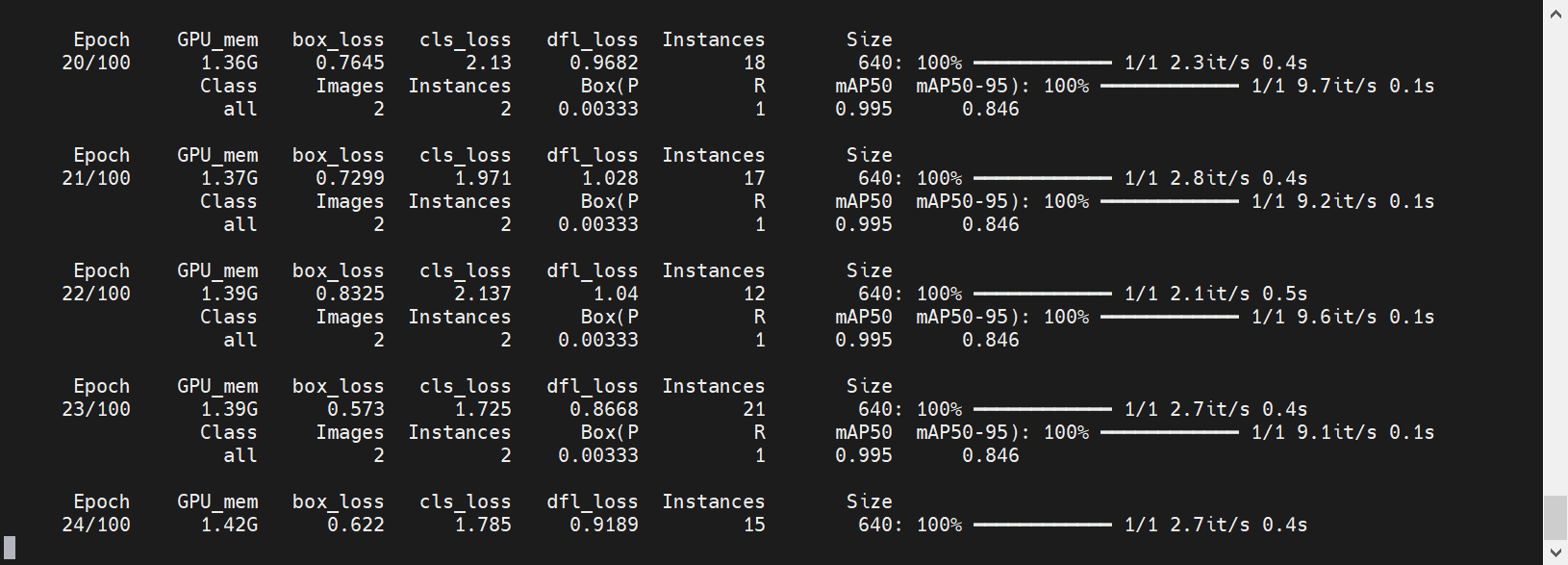

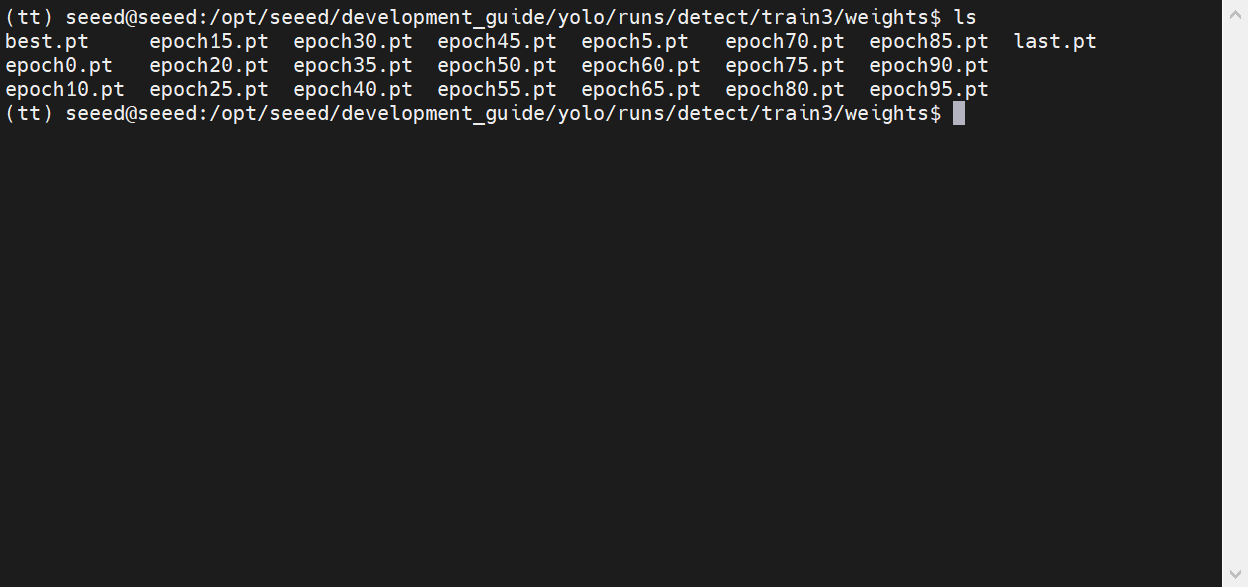

Training output Training results

Dataset Annotation with Label Studio

Use Label Studio (Docker-based) to annotate your training data:

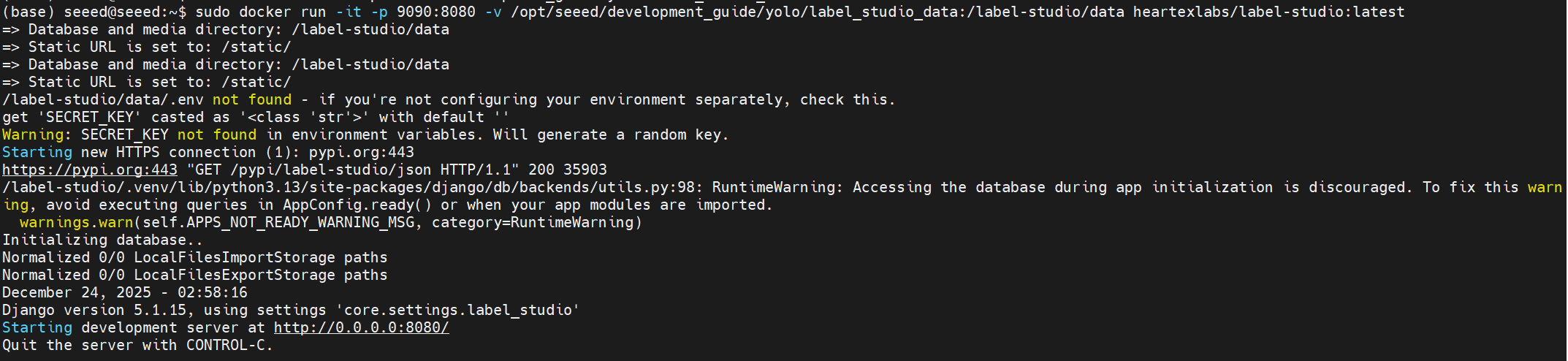

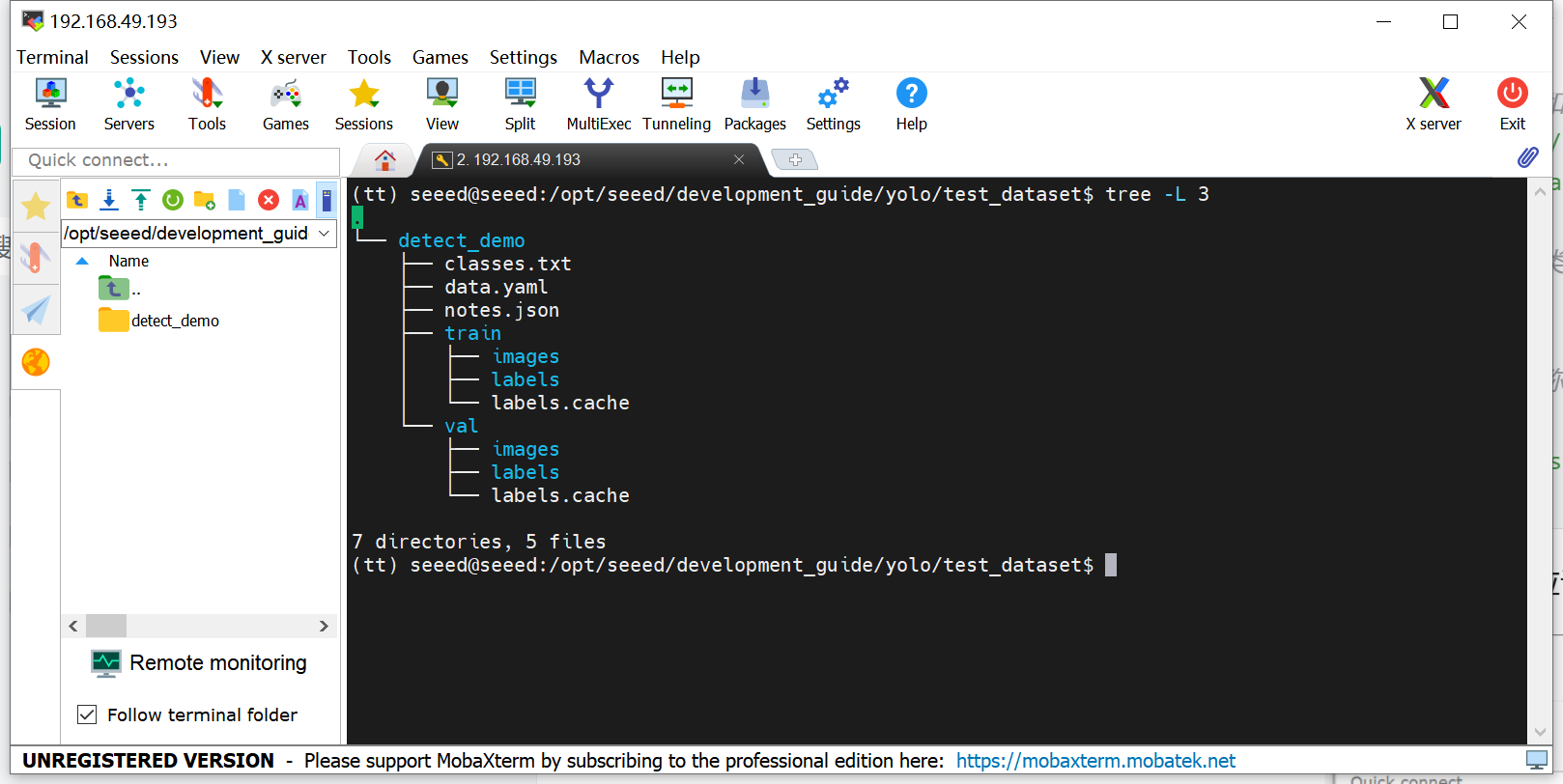

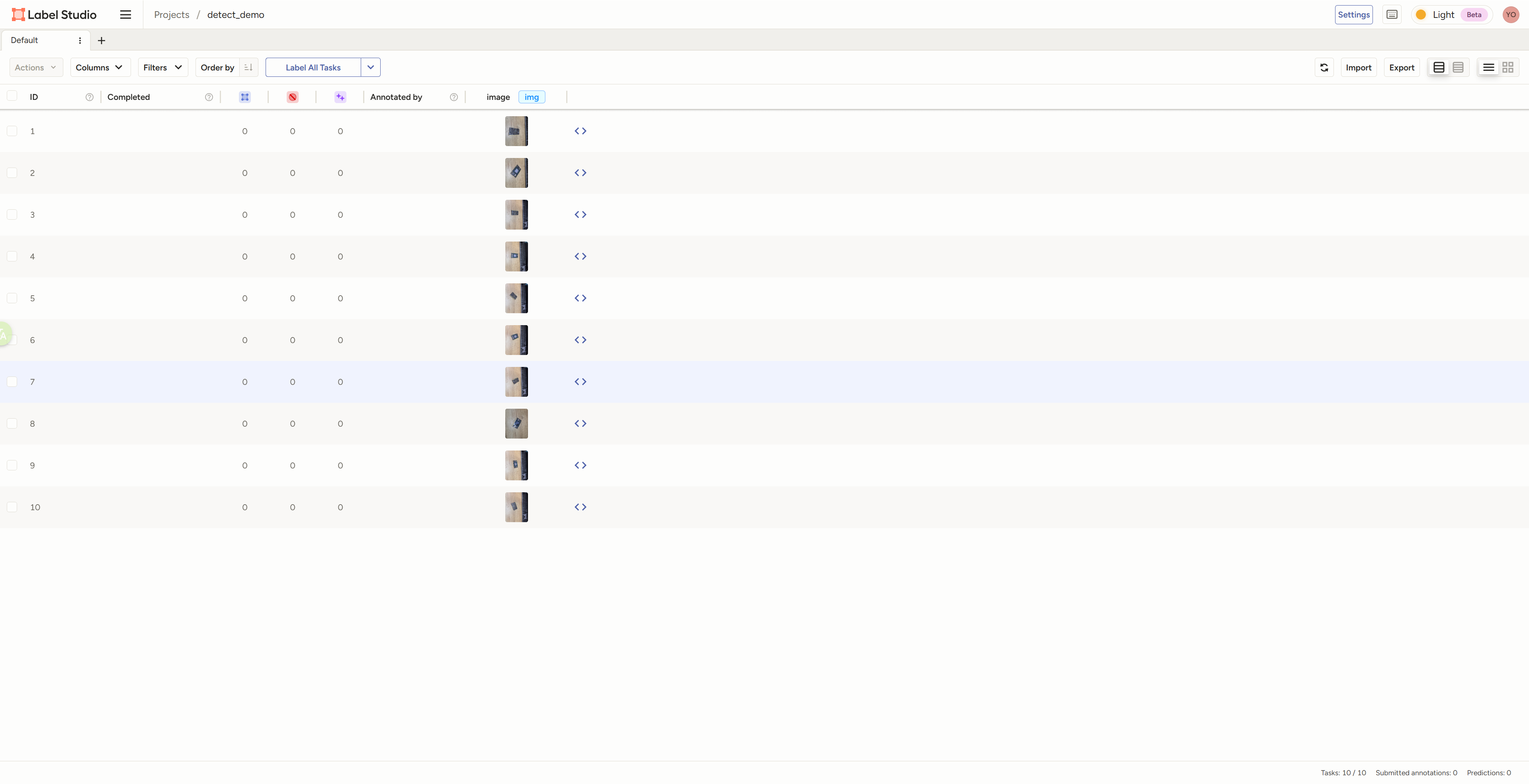

Label Studio start Label Studio annotation Dataset structure

Summary

Training a custom vision model is not only about running a command. It is a data-driven process involving task definition, annotation, training, validation, and error analysis. In the next section, we move from the first successful model to export and edge deployment.

Suggested Next Step

Continue to 4.7 Model Export and Edge Deployment.
