4.8 Real-Time Vision Pipeline Frameworks

Why This Matters

An accurate model alone does not create a real-time vision system.

A working system also needs:

• input from cameras or files
• decode and frame transport
• inference and post-processing
• display, storage, or downstream communication

That whole chain is called a pipeline.

This section introduces the framework thinking needed to understand real-time vision systems before moving into DeepStream and Jetson-specific services.

Learning Objectives

By the end of this section, you should be able to:

• explain the main stages of a real-time vision pipeline
• compare simple application pipelines with framework-based pipelines
• understand the role of OpenCV and GStreamer
• write small examples for reading and processing live video
• think in terms of end-to-end system flow instead of isolated model calls

Core Concepts / Theory

A Real-Time Pipeline Has Stages

A typical real-time visual pipeline includes:

1. source input
2. decode and frame acquisition
3. preprocessing
4. model inference
5. post-processing
6. rendering, storage, or transmission

Why Pipelines Matter

If one stage is unstable or too slow, the whole system suffers.

For example:

• a bad RTSP stream can create dropped frames
• slow preprocessing can increase latency
• unnecessary display overhead can limit throughput

OpenCV vs GStreamer

OpenCV is convenient for learning and application logic.

GStreamer is stronger when you need robust media pipelines, streaming, and real-time data flow.

Both are useful, but they serve different roles.

Key Terms

• Source: where frames come from
• Decode: converting compressed video into frames
• Preprocessing: preparing frames for inference
• Post-processing: turning raw predictions into useful output
• Latency: end-to-end delay through the pipeline
• Throughput: total volume of processed frames or streams

Worked Example / Code Example

Prerequisites: Install the required dependencies:

bashCopy

pip install opencv-python

Simple OpenCV Live Pipeline

import cv2
import time

cap = cv2.VideoCapture(0)
prev_time = time.time()

while True:
    ok, frame = cap.read()
    if not ok:
        break

    current_time = time.time()
    fps = 1.0 / (current_time - prev_time)
    prev_time = current_time

    cv2.putText(frame, f"FPS: {fps:.2f}", (20, 40), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 0), 2)
    cv2.imshow("OpenCV Live Pipeline", frame)

    if cv2.waitKey(1) & 0xFF == ord("q"):
        break

cap.release()
cv2.destroyAllWindows()

GStreamer Example

gst-launch-1.0 videotestsrc ! videoconvert ! autovideosink

RTSP Input Example

gst-launch-1.0 rtspsrc location=rtsp://<camera-ip>/<path> latency=200 ! \
  rtph264depay ! h264parse ! avdec_h264 ! videoconvert ! autovideosink

Common Misunderstandings

• "The model is the pipeline."
  • The model is only one stage inside the pipeline.
• "If I get 30 FPS in the model benchmark, the whole system runs at 30 FPS."
  • End-to-end performance depends on the entire pipeline.
• "OpenCV and GStreamer do the same thing."
  • They overlap in some areas, but they are not the same tool.

MediaPipe

MediaPipe is Google's open-source framework for building real-time multimodal ML perception pipelines.

Setup

uv venv .mediapipe --python 3.10.12
source .mediapipe/bin/activate
uv pip install mediapipe opencv-python dlib

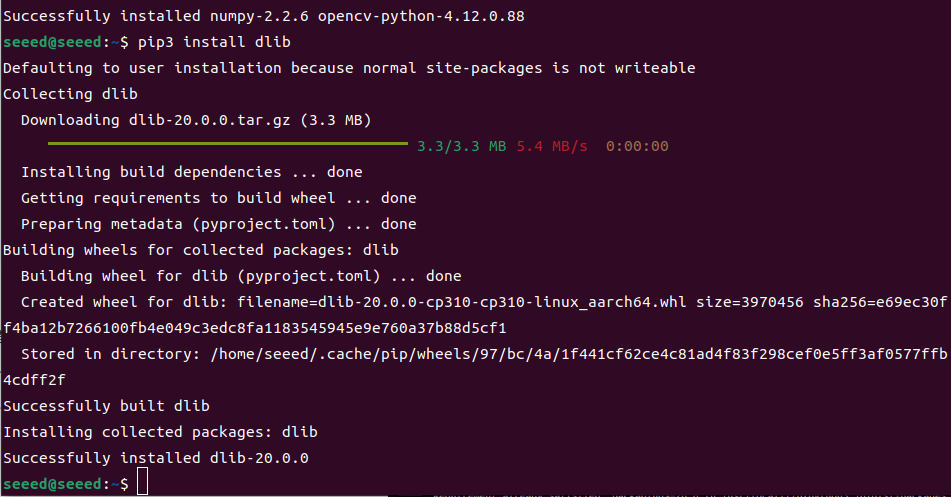

Note: dlib compilation may take several minutes. Be patient.

Hand Detection

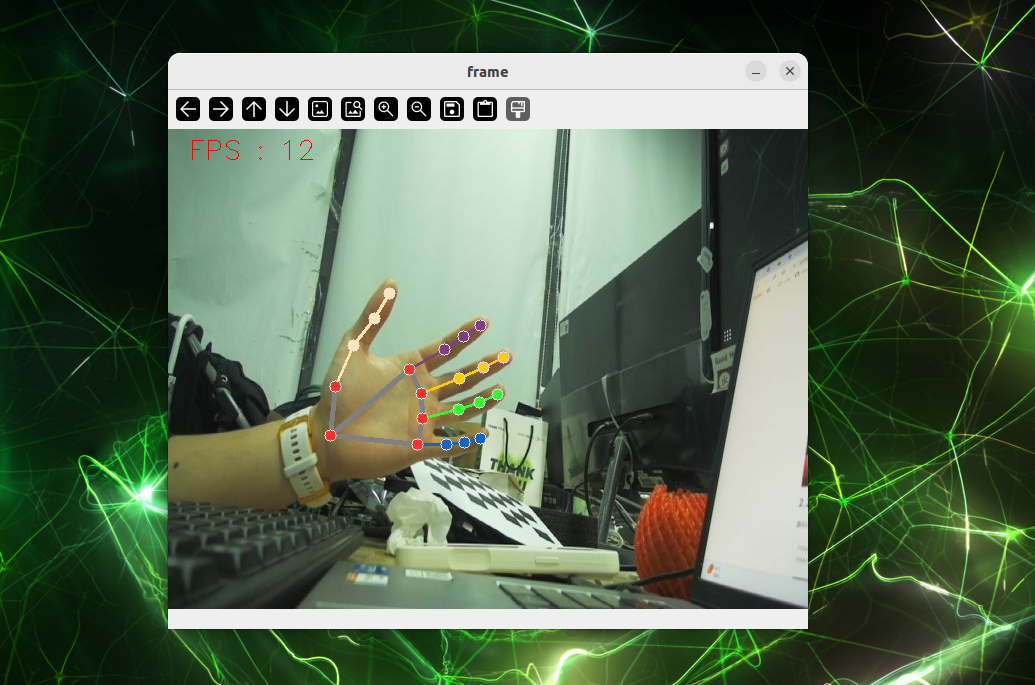

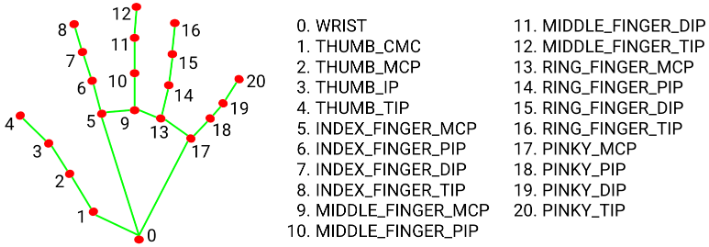

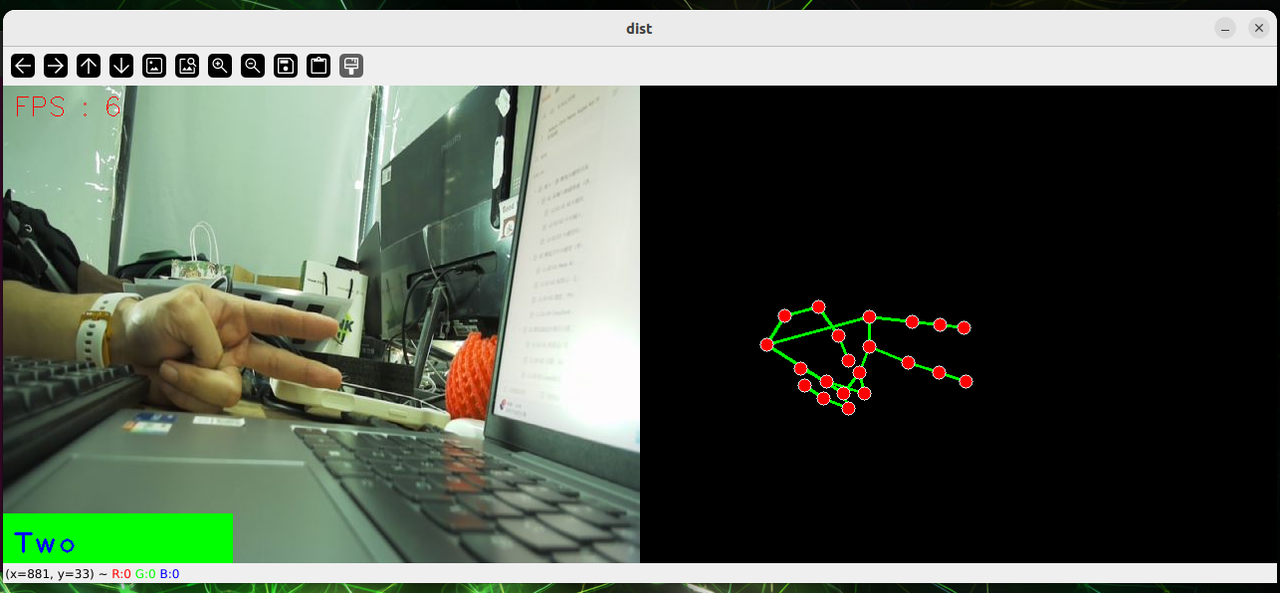

Detect 21 hand keypoints in real-time:

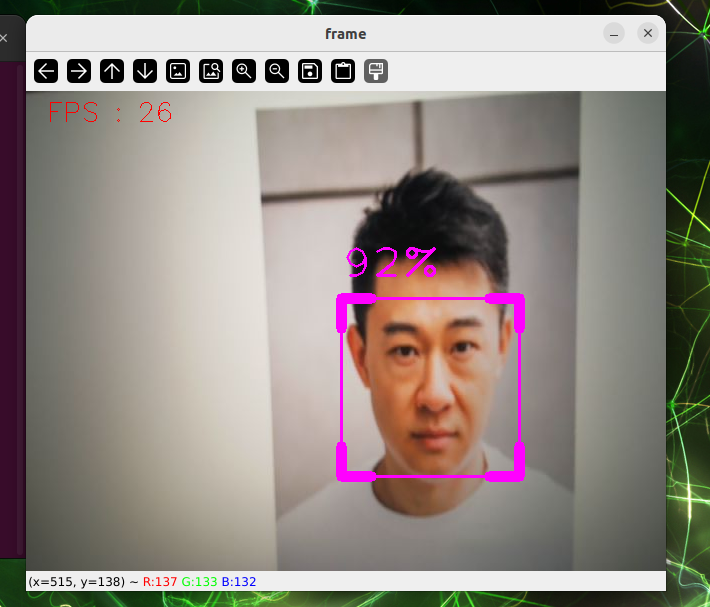

Face Detection

Pose Estimation

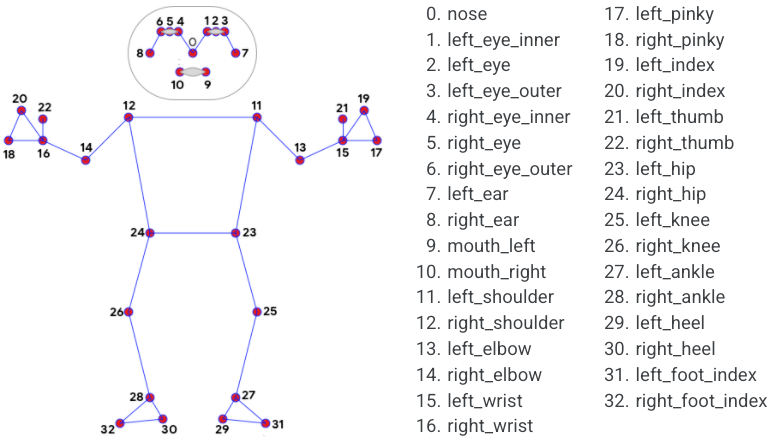

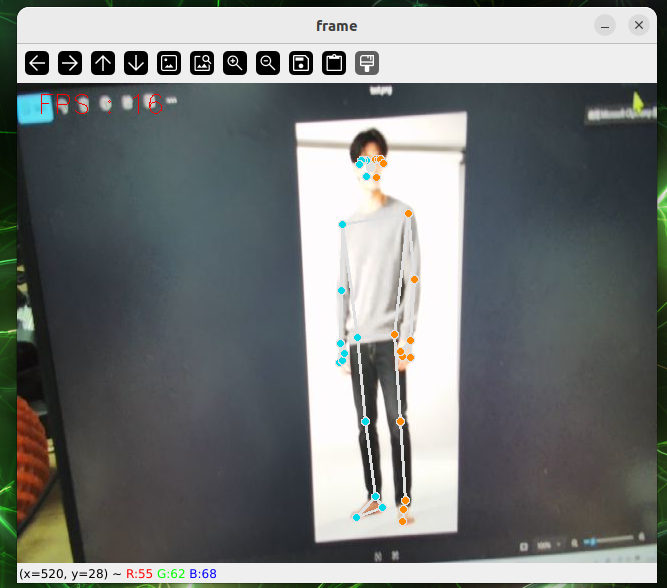

Detect 32 body keypoints:

Holistic Detection

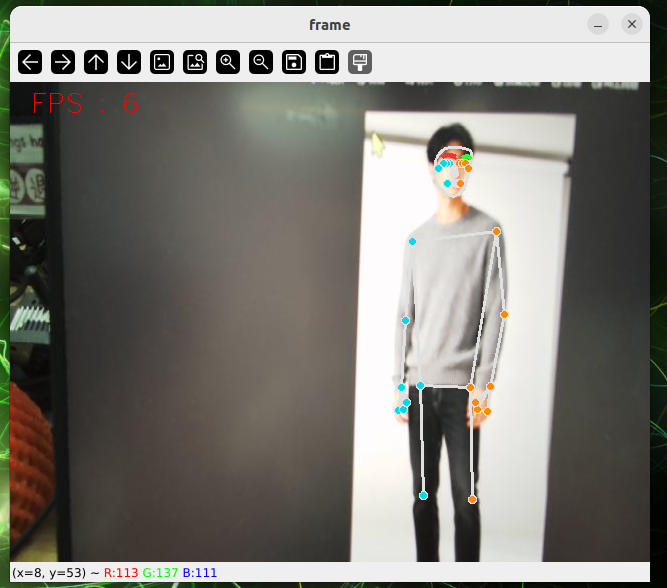

Simultaneously detect body, hand, and face keypoints:

Other MediaPipe Features

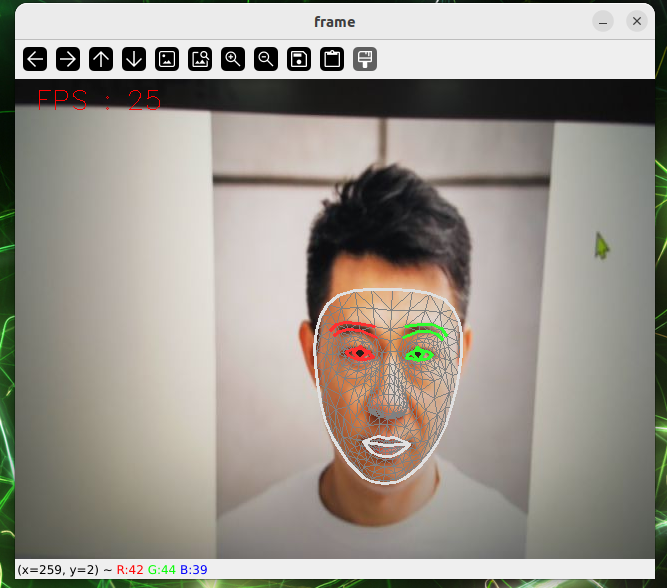

• Face Mesh — 3D face mesh with 468 landmarks

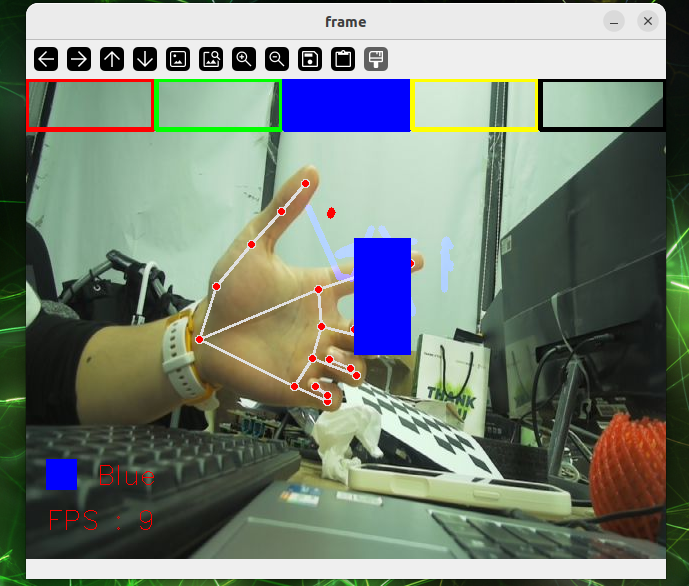

• Virtual Brush — Draw with finger gestures
• Gesture Recognition — Recognize 14+ hand gestures

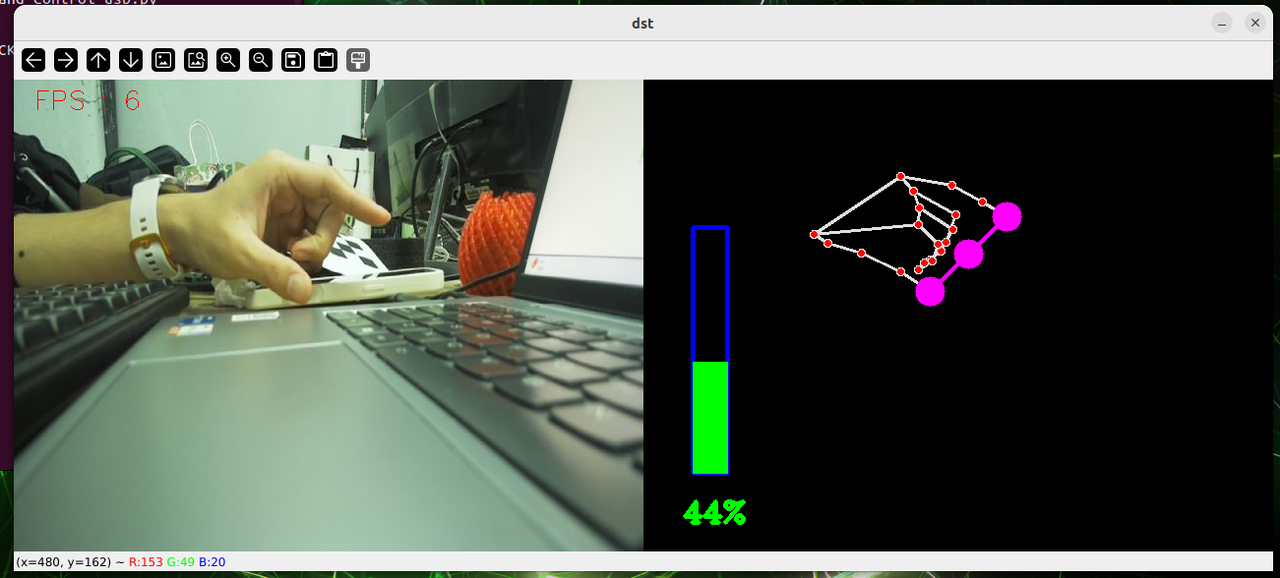

• Finger Control — Control UI with finger distance

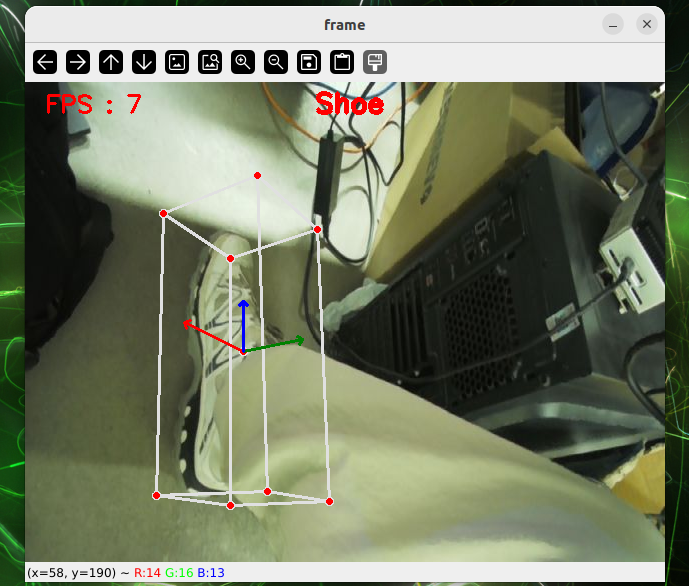

• 3D Object Detection — Detect shoes, chairs, cameras, cups

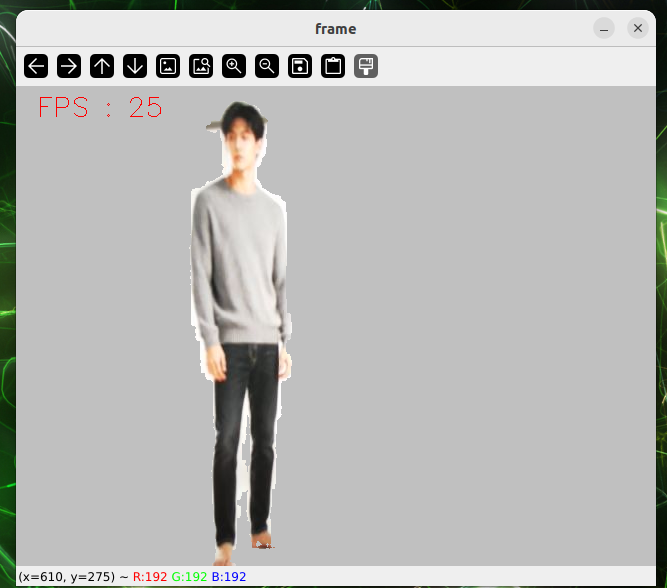

• Background Removal — Segment and replace backgrounds

QR Code Recognition

Generate QR Codes

Prerequisites: Install the required dependencies:

bashCopy

pip install qrcode pillow opencv-python numpy pyzbar

cd 4-Computer-Vision/4.8-Real-Time-Vision-Pipeline-Frameworks/code
python qr_code_generate.py

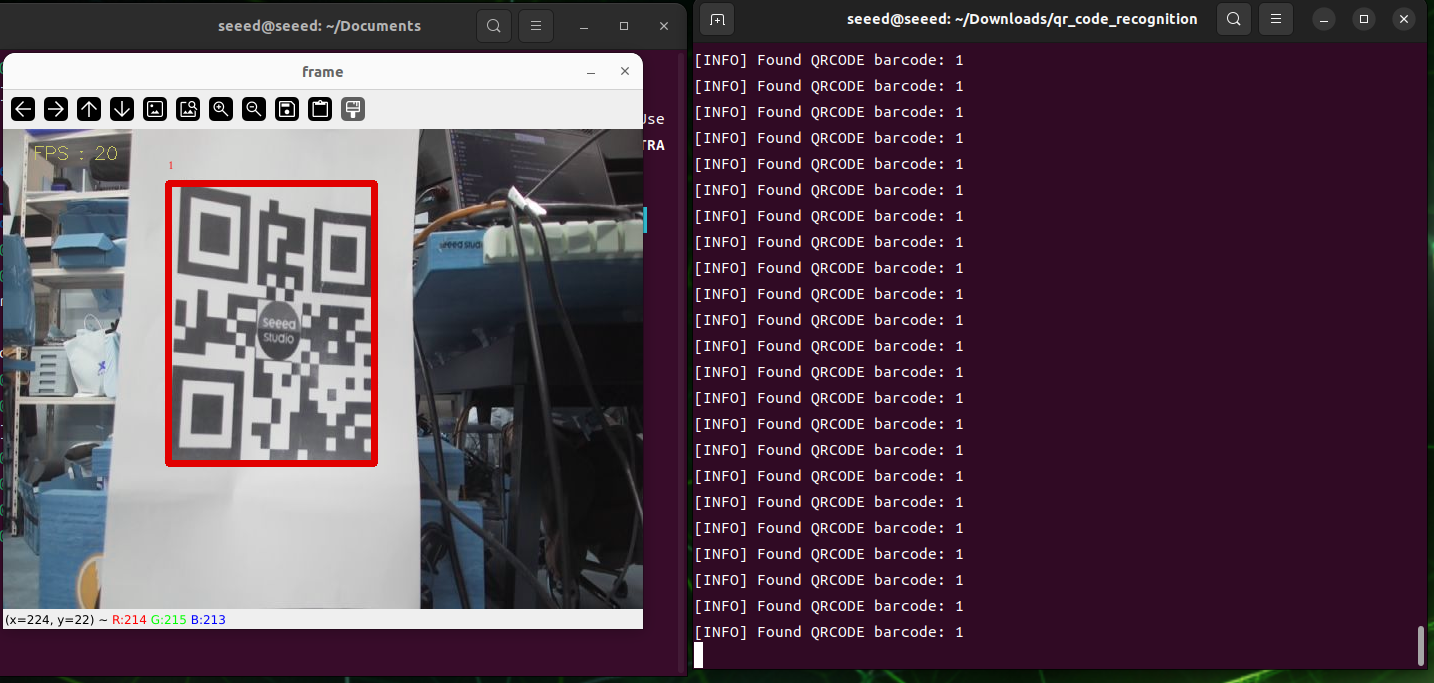

Detect QR Codes

cd 4-Computer-Vision/4.8-Real-Time-Vision-Pipeline-Frameworks/code
python qr_code_detect.py

Exercises / Reflection

1. Draw a five-stage real-time pipeline for a webcam detector.
2. Run the OpenCV example and measure approximate FPS on your machine.
3. Compare a video file input and a live camera input. What practical differences do you observe?
4. Explain why end-to-end latency is often more important than model inference time alone.

Summary

Real-time computer vision depends on pipeline design, not only on models. Understanding input, decode, preprocessing, inference, post-processing, and output prepares the learner for more advanced edge frameworks such as DeepStream.

Suggested Next Step

Continue to 4.9 DeepStream and Jetson.

References

• OpenCV Documentation
• GStreamer Documentation
