Seeed Grove Kit Vibe Coding: Build 4 Real Hardware Projects with AI
Vibe coding is usually associated with software: describe what you want, let an AI produce a first version, then test and refine it. Seeed Grove Kit vibe coding applies that loop to physical computing. With the Grove Beginner Kit for Arduino and CodeCraft, you can describe a device behavior in natural language, generate a project, compile and flash it, then judge the result on real sensors, an OLED, an LED, a buzzer, or a browser interface.
This guide shows a reliable prompt-to-device workflow and four published Grove Beginner Kit applications. It also explains what the AI can accelerate—and what the builder still needs to verify.
Quick answer: Seeed Grove Kit vibe coding combines CodeCraft’s AI-assisted hardware workflow with the Grove Beginner Kit’s pre-wired inputs and outputs, so beginners can move quickly from a specific prompt to a testable physical prototype.
What Does “Seeed Grove Kit Vibe Coding” Mean?
In this guide, vibe coding means using conversational AI to create and iterate on a hardware project. It does not mean accepting the first generated result without understanding or testing it.
A responsible workflow looks like this:
Describe the behavior → generate a first version → compile and flash → observe the hardware → identify a problem → refine the prompt or code → test again
The Grove Beginner Kit makes this practical because the board, display, sensors, controls, LED, and buzzer are already connected on one PCB. According to the official product documentation, it combines an ATmega328P-based, Arduino-compatible Seeeduino Lotus with ten Grove modules. The modules are pre-wired, so a first project does not require a breadboard or jumper wires.
CodeCraft adds a browser-based, hardware-focused AI workflow. Its current official product page lists natural-language code generation, cloud compilation, one-click upload for supported hardware, and access to projects shared through SenseCraft AI.
Together, they shorten setup time. They do not remove the need to specify requirements, check generated logic, use compatible hardware, or troubleshoot the physical result.
Why the Grove Beginner Kit Works Well for Hardware Vibe Coding
The kit provides several types of input and output on one board:
- Inputs: button, rotary potentiometer, light sensor, sound sensor, temperature and humidity sensor, air-pressure sensor, and three-axis accelerometer.
- Outputs: LED, buzzer, and 0.96-inch OLED display.
- Controller: an Arduino-compatible Seeeduino Lotus based on the ATmega328P.
That combination supports a useful progression:
- Control one output, such as changing LED brightness.
- Read one input, such as the rotary potentiometer.
- Map an input to an output or interface.
- Combine several sensors into a monitoring device.
- Add an external Grove module when the project needs movement or another function.
There is one compatibility detail to check before publishing or reusing generated code. The official Wiki states that kits produced after October 2025 use a DHT20 temperature-and-humidity sensor and an SPA06-003 pressure sensor, replacing DHT11 and BMP280 parts used in older versions. Tell CodeCraft which kit revision or sensor model you have when a project depends on those libraries.
A Better Prompt-to-Prototype Workflow
Good hardware results start with a testable specification, not a vague request such as “make something cool with my Grove kit.”
Define the input, behavior, and output
Before prompting, write down:
- Hardware: exact board and any external modules.
- Input: sensor, button, knob, browser control, or serial command.
- Behavior: the rule connecting the input to the result.
- Output: LED, OLED, buzzer, motor, browser interface, or data.
- Success condition: what you should be able to observe when it works.
Use a structured prompt
Start with this template:
I am using a Grove Beginner Kit for Arduino. Read [input/module and pin]. When [condition], make [output/module] do [behavior]. Show [information] on the OLED or web interface. Generate the firmware, compile it, and provide the supported flashing workflow. Explain the important pins, libraries, and test steps.
Test one behavior at a time
Confirm that the project compiles and flashes before testing every feature at once. Then check each input and output separately.
Report evidence when asking for a revision
Instead of saying “it does not work,” report:
- what you expected;
- what actually happened;
- whether compilation and flashing succeeded;
- the board and sensor revision;
- any error message;
- the smallest change that reproduces the problem.
This turns vibe coding into an engineering loop rather than a one-shot generation exercise.
Four Grove Beginner Kit Vibe Coding Projects to Explore
The following applications are published in the SenseCraft AI application library. They demonstrate different input-output patterns and levels of complexity. They are examples to inspect, duplicate where permitted, and adapt—not independent proof that every generated project will work unchanged on every setup.

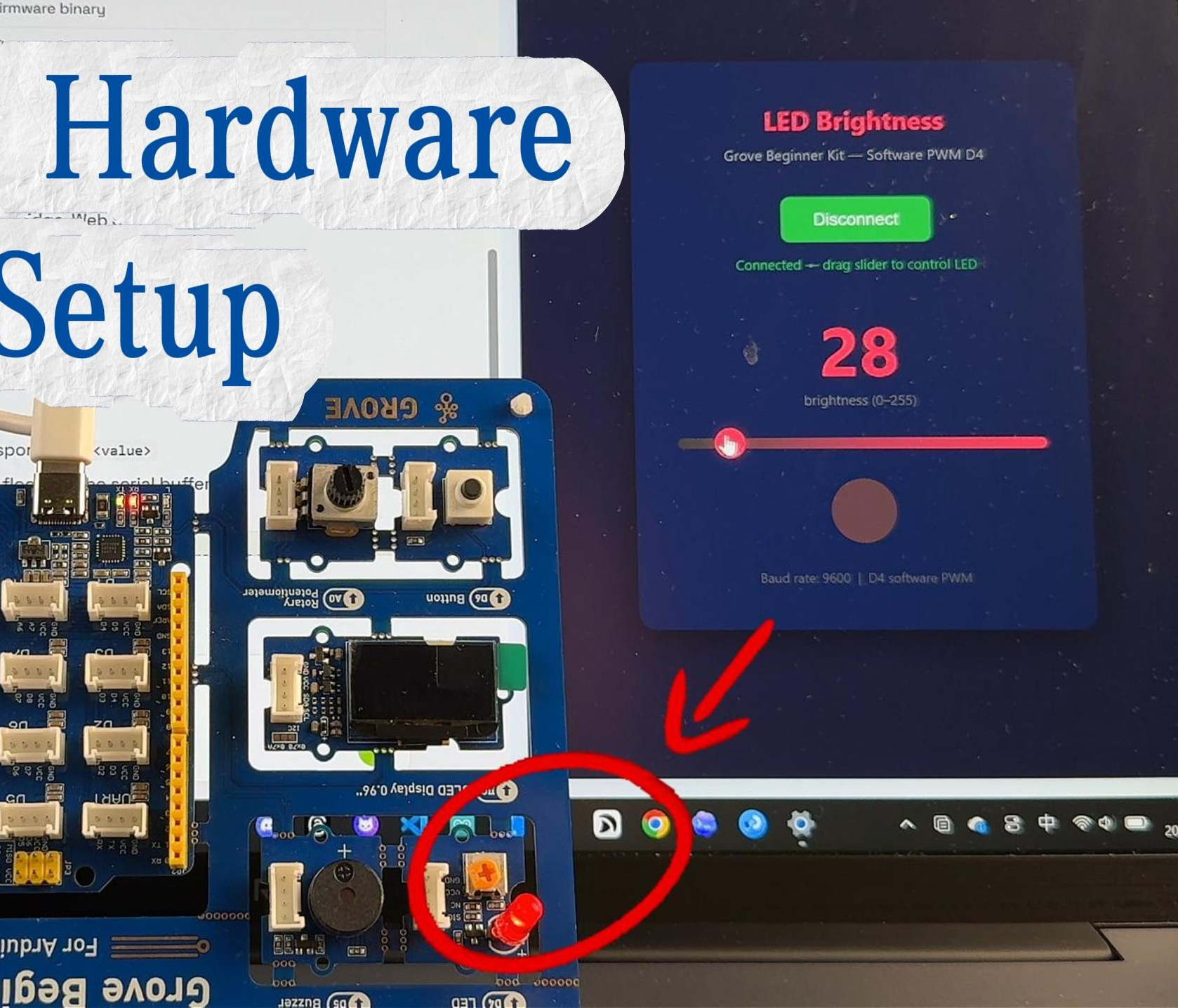

Web LED Dimmer: Browser Slider to Physical LED
The Web LED Dimmer Tutorial connects a browser interface to the Grove Beginner Kit over Web Serial.
How it works
- Input: a browser slider with values from 0 to 255.
- Processing: the page sends a number over the serial connection.
- Output: the onboard LED on D4 changes brightness using software PWM.
- Success condition: the physical LED and the circular preview in the browser respond as the slider moves.
This project is a useful introduction to the boundary between web software and embedded firmware. It also reveals an important hardware constraint: D4 is not a hardware PWM pin, so the application uses software PWM. The project notes that slight flicker may appear at very low brightness.
Web Serial support is another requirement. The application recommends Chrome or Edge and a USB cable that supports data transfer. A charge-only cable will not work.

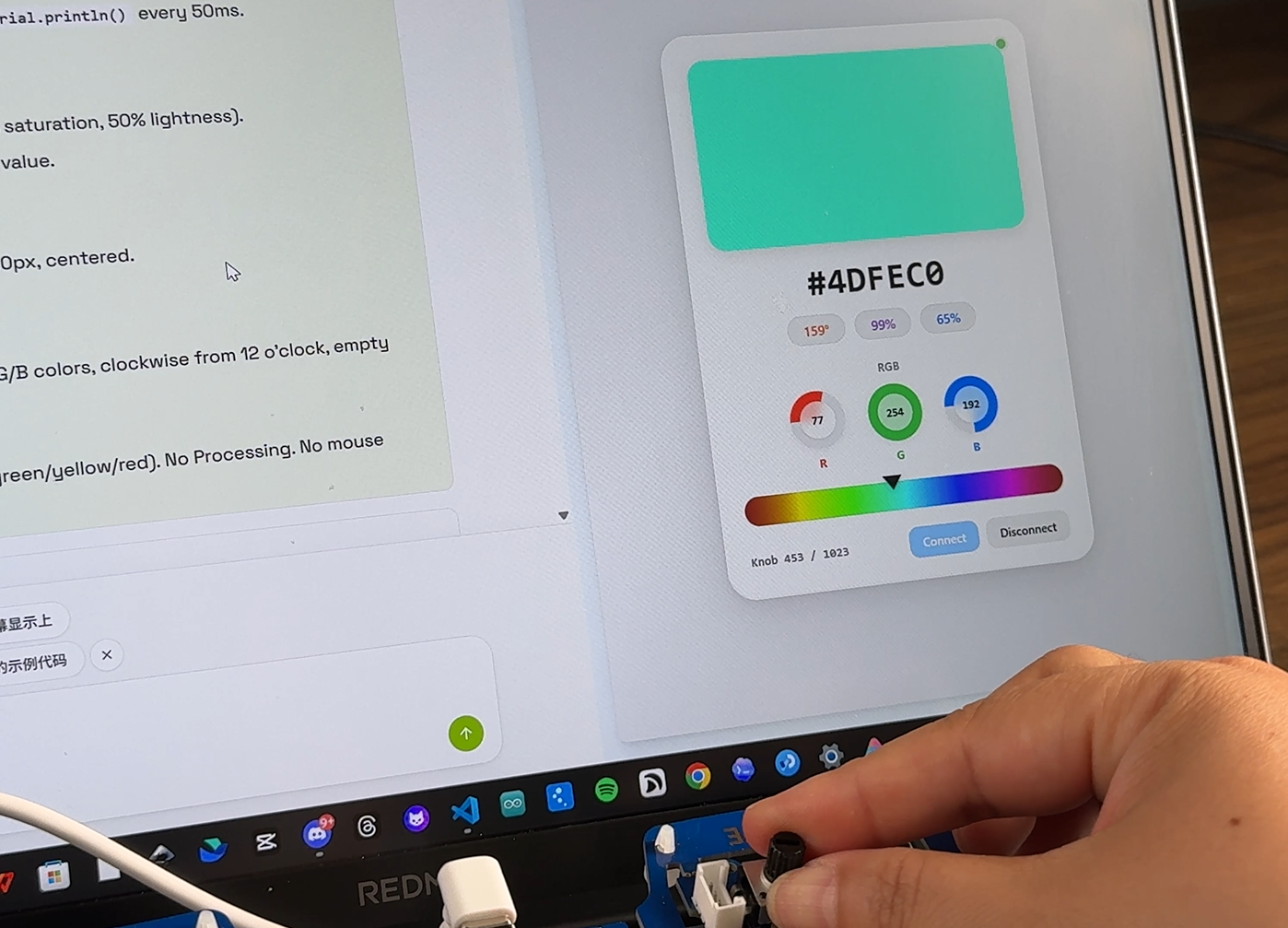

Knob Color Picker: Physical Input Controls a Web Interface
The Knob Color Picker reverses the direction of interaction: the physical kit controls a page in the browser.
How it works
- Input: the Grove Beginner Kit’s built-in rotary potentiometer.
- Processing: the board sends the knob value to the browser through Web Serial.
- Output: the page updates a color swatch, color code, RGB values, hue, saturation, and brightness.
- Success condition: turning the knob causes the displayed color and values to change in real time.
Because the potentiometer is already integrated, the basic project requires no extra wiring. It is a practical way to explore analog input, value mapping, serial communication, and human-interface design.
The project’s own iteration advice is also valuable: if the gradient or mapping does not match the physical knob position, describe that mismatch precisely in the next CodeCraft prompt.

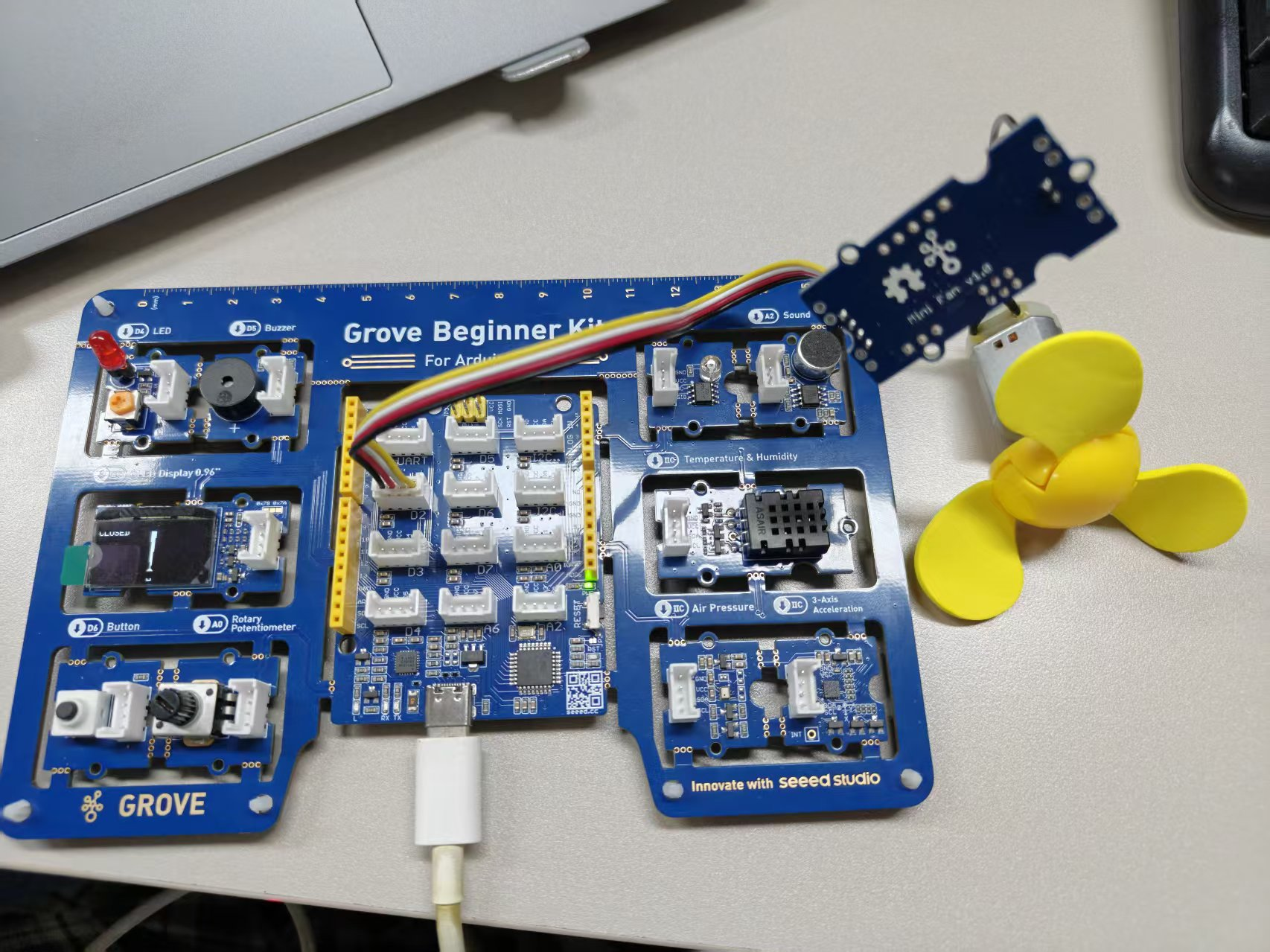

Blossom Fan: Turn Sensor Data into Interactive Art
The Blossom Fan shows how a simple analog input can control several coordinated outputs.
How it works
- Input: the rotary potentiometer.
- Processing: the knob position controls the virtual fan angle and blossom density.
- Outputs: an animated folding fan and petals on the OLED, the onboard LED, and an external Mini Fan.
- Success condition: opening the virtual fan increases the visual blossom effect and activates the physical outputs; closing it reverses the behavior.
This is more than a sensor demo: it combines analog mapping, OLED animation, and synchronized physical feedback. It is useful for creative coding, interactive installations, and lessons that connect technology with visual design.
Hardware note: unlike the first two examples, the published bill of materials includes an external fan-related connection in addition to the Grove Beginner Kit. Verify the exact Mini Fan and cable requirements before attempting to reproduce the full physical effect.

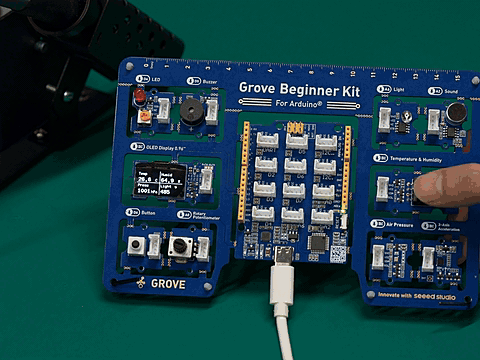

Desktop Weather Station: Combine Multiple Sensors and Rules
The Desktop Weather Station is the most system-oriented example in this group.
How it works
- Inputs: temperature, humidity, air pressure, light level, rotary potentiometer, and button.
- Processing: the firmware updates readings, evaluates configured thresholds, tracks trends, and changes pages according to knob position.
- Outputs: four-quadrant OLED readings, trend arrows, comfort labels, LED flashes, and buzzer alerts.
- Success condition: readings update, the knob changes views, the button toggles monitoring, and configured abnormal conditions trigger visible and audible alerts.
The application was iterated through several rounds of conversation: first the real-time readings, then trend arrows and comfort labels, followed by alarms and input controls. That staged approach is a strong model for larger vibe coding projects.
Treat its thresholds as creator-configured demonstration values, not universal health or safety standards. The project is suitable for learning and prototyping; it should not be described as a calibrated or safety-critical monitoring instrument without separate validation.
Compare the Four Projects
Try the workflow: Open CodeCraft and start with one input and one output. Add the next feature only after the first behavior works reliably.
How to Improve an AI-Generated Grove Project
The first generated version is a prototype. Use these checks before calling it finished.
Confirm the board and pins
The onboard LED, buzzer, button, sensors, and display use defined connections. Do not assume a pin from a different Arduino kit applies to the Grove Beginner Kit.
Confirm the sensor revision
Older and newer kits may use different temperature/humidity and pressure sensors. A project can compile incorrectly—or return no useful data—when the selected library does not match the installed component.
Separate software errors from hardware errors
Ask these questions in order:
- Did the code compile?
- Did flashing complete?
- Does the operating system detect the serial device?
- Is another page or program holding the port?
- Does the input value change?
- Does a minimal output test work?
- Does the combined behavior meet the requirement?
Keep safety within the project scope
Use appropriate supervision when breaking modules out of the PCB or working with tools. Do not drive high-current loads directly from a microcontroller pin. Treat AI-generated electrical instructions as suggestions that must be checked against official hardware documentation.
Is the Grove Beginner Kit the Right Choice?
The kit is a strong fit when you want:
- a pre-wired Arduino-compatible platform;
- several sensors and outputs in one board;
- fast classroom or workshop setup;
- a clear path from one-function demos to multi-sensor projects;
- a physical target for learning prompt design, testing, and debugging.
Consider a different board or additional modules when you need built-in Wi-Fi, Bluetooth, cameras, high-performance on-device AI, motors, relays, or sensors not included in the kit. The Seeeduino Lotus at the center of the Beginner Kit is based on the ATmega328P, so project scope should match its memory, processing, and connectivity limits.
If the kit matches your project, you can view specifications and availability on the official Grove Beginner Kit for Arduino product page. Pricing and stock can change, so check the product page rather than relying on a price quoted in an article.
For a broader education perspective, read AI Hardware Education for Kids: From Prompt to Real Device. For more project inspiration across supported hardware, explore 8 AI Hardware Project Ideas You Can Build with AI Coding.
Frequently Asked Questions
Can I use Grove Beginner Kit vibe coding without programming experience?
You can begin by describing a simple behavior in natural language, but you should still learn to identify inputs, outputs, conditions, variables, pins, and test results. CodeCraft can accelerate the first version; it should not replace understanding and verification.
Does CodeCraft replace the Arduino IDE?
For supported CodeCraft workflows, projects can be generated in the browser, compiled in the cloud, and uploaded through the provided flow without setting up a conventional local Arduino IDE. Compatibility still depends on the board, browser, USB connection, libraries, and project requirements.
Do all four projects work with only the Grove Beginner Kit?
No. The Web LED Dimmer and Knob Color Picker also need a computer, compatible Web Serial browser, and data-capable USB cable. The full Blossom Fan effect uses an external Mini Fan and suitable connection. Check each application’s current bill of materials before building.
Is the Grove Beginner Kit compatible with Arduino code?
Yes. The kit uses an Arduino UNO-compatible Seeeduino Lotus based on the ATmega328P. Generated code still needs to use the correct pins, libraries, and sensor models for the kit revision.
What is the best first vibe coding project for this kit?
Start with one input and one output. The Web LED Dimmer is suitable for learning browser-to-device control, while the Knob Color Picker is suitable for learning device-to-browser interaction. Test the smallest behavior first, then add interface or sensor features.
Final Thoughts
Seeed Grove Kit vibe coding is most useful when speed and verification work together. CodeCraft can help turn a natural-language idea into a first firmware and interface, while the Grove Beginner Kit makes the result observable on real hardware. The builder still owns the requirements, compatibility checks, tests, and final decisions.
Choose one of the four published applications, identify its input-output pattern, and adapt one feature at a time. When you are ready to build, open CodeCraft, explore the linked SenseCraft AI applications, or get the Grove Beginner Kit for Arduino from the official store.
