Hardware projects are exciting—until your idea gets buried under board packages, library conflicts, compiler errors, and upload settings. For beginners, getting a sensor, screen, or motor to respond can take longer than deciding what to build in the first place.
AI coding for hardware shortens that path. Instead of starting with an empty sketch, you can describe the result you want, generate code for supported hardware, compile it in the cloud, and upload it to a real device. You still learn by testing and improving the project, but you spend less time fighting the development environment.
In this guide, we explore eight real AI hardware projects built with CodeCraft, from beginner-friendly games and sensor displays to dashboards and robotic-arm control. Each project includes a recommended skill level, hardware, key concepts, and a working application you can use as inspiration.
What Is AI Coding for Hardware?
AI coding for hardware means using an AI assistant that understands development boards, sensors, displays, and other physical components—not just general software—to help create firmware for real devices.
A general chat tool can suggest an Arduino or ESP32 sketch, but the user may still need to install an IDE, select a board package, find compatible libraries, fix build errors, and configure the upload process. A hardware-focused workflow connects more of the journey:
- Describe what you want the device to do.
- Select or confirm the supported hardware.
- Generate and refine the project code with AI.
- Compile the firmware in the cloud.
- Upload it to the connected board.
- Test the physical result and iterate with a new prompt.
CodeCraft is a browser-based AI coding assistant built for this workflow. It combines natural-language code generation, zero local setup, cloud compilation, and one-click upload for supported hardware. Projects can also be shared through the SenseCraft App Square, giving beginners a place to learn from working examples instead of always starting from scratch.
Ready to try AI hardware coding? Open the CodeCraft workspace and describe your first project in plain language.
Which Hardware Should You Start With?
The best board depends on what you want to see, sense, or control. These three options cover the projects in this guide.
Grove Beginner Kit: Best for Sensors
The Grove Beginner Kit for Arduino combines multiple sensors, inputs, outputs, and an OLED display on one board. It is a practical starting point for weather stations, alarms, environmental monitoring, and classroom experiments because beginners can explore several components without building a large circuit first.
Wio Terminal: Best for Screens, Games, and Dashboards
Wio Terminal combines a display, buttons, connectivity, and embedded sensors in a compact device. It is especially useful for interactive games, clocks, data dashboards, and portable control panels.
XIAO ESP32S3 Sense: Best for Compact AI and Connected Devices
The thumb-sized XIAO ESP32S3 Sense includes a camera and digital microphone. Its small form factor makes it a strong base for wearables, smart accessories, vision experiments, TinyML, and connected ESP32 projects.
8 AI Hardware Projects for Beginners and Makers
The projects below progress from quick visual builds to more ambitious applications. You can open each project page to understand the outcome before creating your own version.

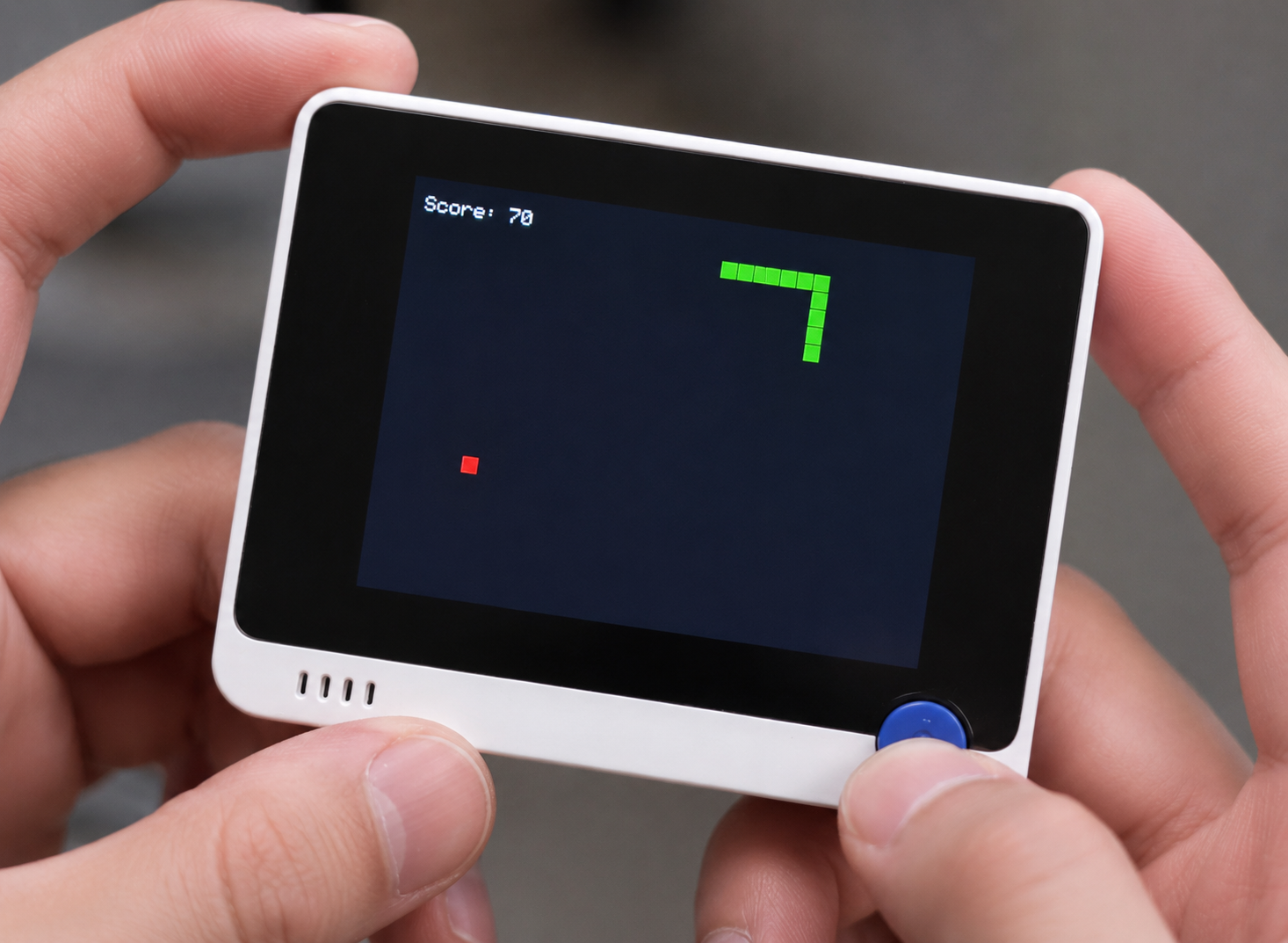

1. Build a Snake Game on Wio Terminal
- Hardware: Wio Terminal
- Difficulty: ★☆☆☆☆
- Best for: A first screen-and-button project
- You will explore: Game loops, input handling, display drawing, and collision rules
Snake is a compact first project because the rules are easy to describe: move a character around the screen, collect food, grow longer, and end the game when the snake hits itself or a boundary. Yet the project introduces several ideas used across embedded development, including timed updates, button input, coordinates, and persistent game state.
With CodeCraft, you can begin with a prompt such as: “Create a Snake game for Wio Terminal. Use the directional control for movement, increase the score when the snake eats food, and show a restart screen after game over.” Once the basic version works, ask the assistant to increase the speed, change the colors, or add a high-score system.
View the Snake Game application

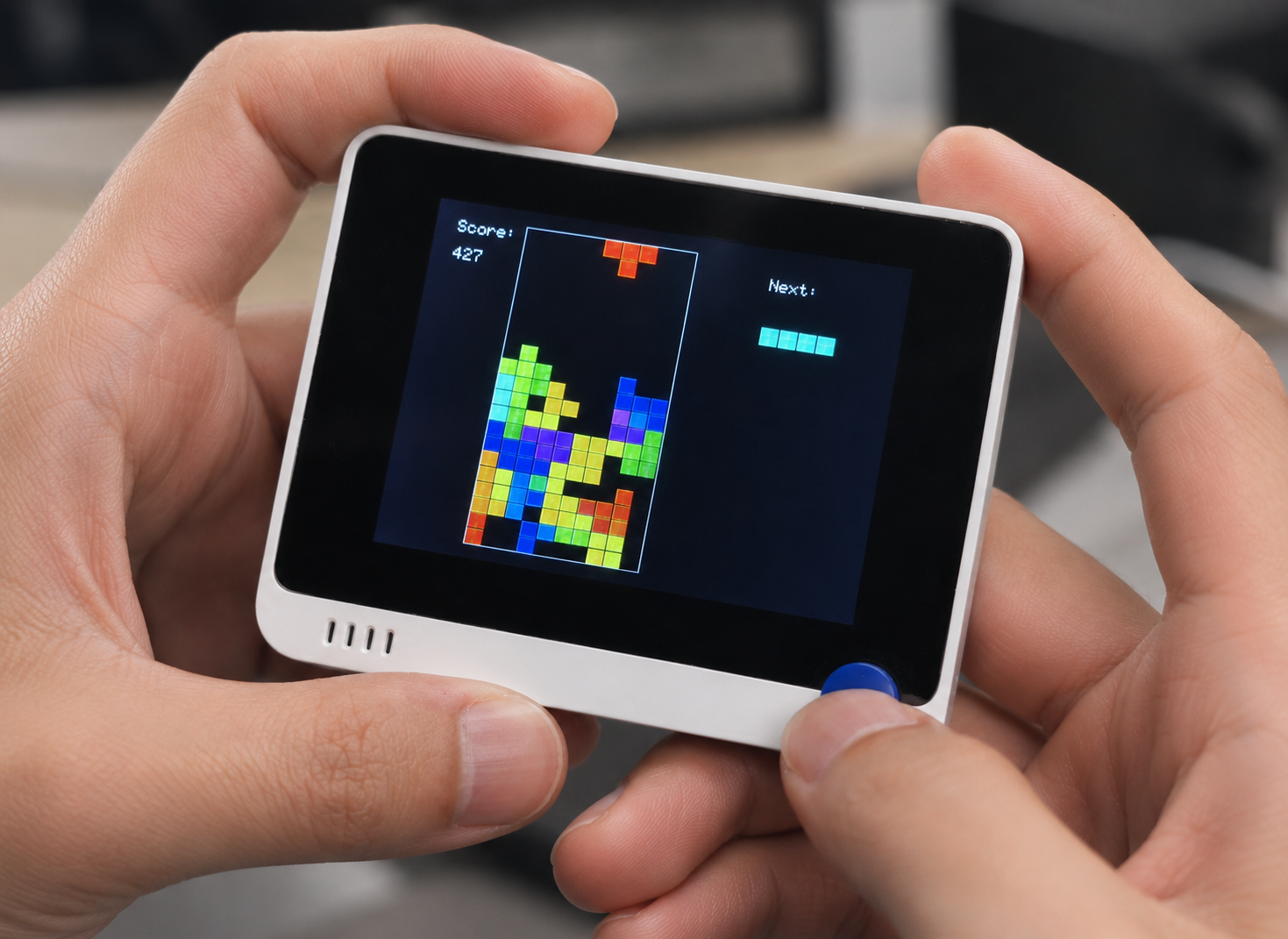

2. Recreate Tetris on Wio Terminal
- Hardware: Wio Terminal
- Difficulty: ★★☆☆☆
- Best for: Beginners ready for more game logic
- You will explore: Arrays, rotation, collision detection, scoring, and display updates
Tetris builds on many of the same skills as Snake but introduces more structured logic. Falling pieces need to rotate, detect occupied cells, clear complete lines, and update the score. That makes it a useful next step for understanding how a larger embedded program can be divided into smaller behaviors.
Rather than requesting every feature at once, build the project in stages. First generate a falling block, then add horizontal movement, rotation, collision detection, completed-line removal, and scoring. Iterative prompting makes problems easier to isolate and helps you understand what each change adds.
View the Tetris Game application

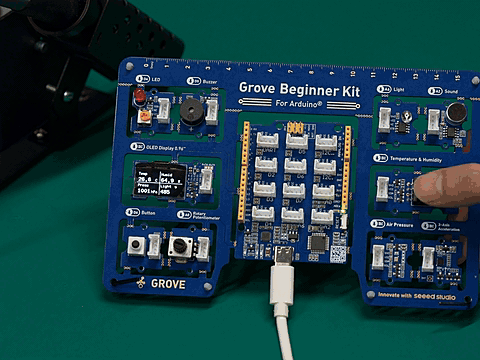

3. Make a Desktop Weather Station
- Hardware: Grove Beginner Kit
- Difficulty: ★★☆☆☆
- Best for: Sensor and environmental-monitoring beginners
- You will explore: Sensor readings, OLED layouts, thresholds, trend indicators, and alarms
A desktop weather station turns raw sensor readings into information you can understand at a glance. This example displays multiple readings in a four-quadrant OLED layout, adds trend arrows and a comfort rating, and uses sound and light for alerts. A knob changes pages, while buttons control monitoring.
The project is a strong introduction to AIoT because it connects three layers: collecting physical data, turning data into simple decisions, and presenting the result through a usable interface. You can customize it for a classroom, greenhouse, bedroom, workshop, or storage area by changing the alert thresholds and screen labels.
View the Beginner Kit Desktop Weather Station

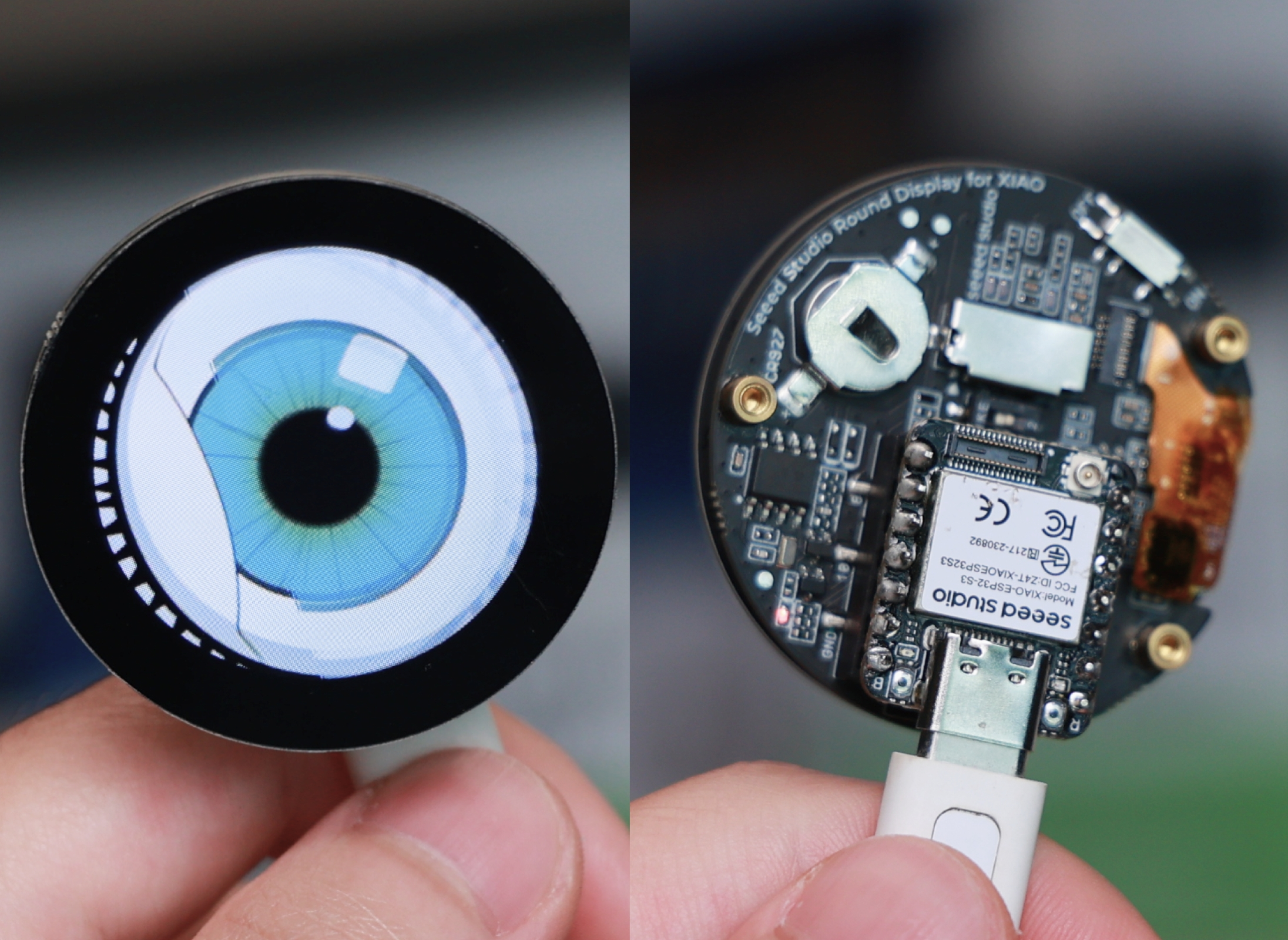

4. Create a Blinking Cyber Eye Wearable
- Hardware: XIAO ESP32S3 and a round OLED display
- Difficulty: ★★☆☆☆
- Best for: Wearables and creative electronics
- You will explore: Frame animation, display timing, low-power design, and compact enclosures
Not every useful hardware project needs a dense dashboard. The Blinking Cyber Eye uses a round OLED screen to imitate the natural rhythm of a blinking eye. Mounted as a pendant, keychain, or backpack accessory, it turns a small development board into an expressive wearable.
This project is a good way to learn how timing changes the personality of an interface. Ask CodeCraft to vary the delay between blinks, create different eye expressions, or put the display to sleep after a period of inactivity. More advanced versions could respond to motion, sound, or touch.
View the Blinking Cyber Eye application
Make it your own: Open a project in App Square, study the result, then use CodeCraft to describe a different behavior, screen style, or sensor interaction.

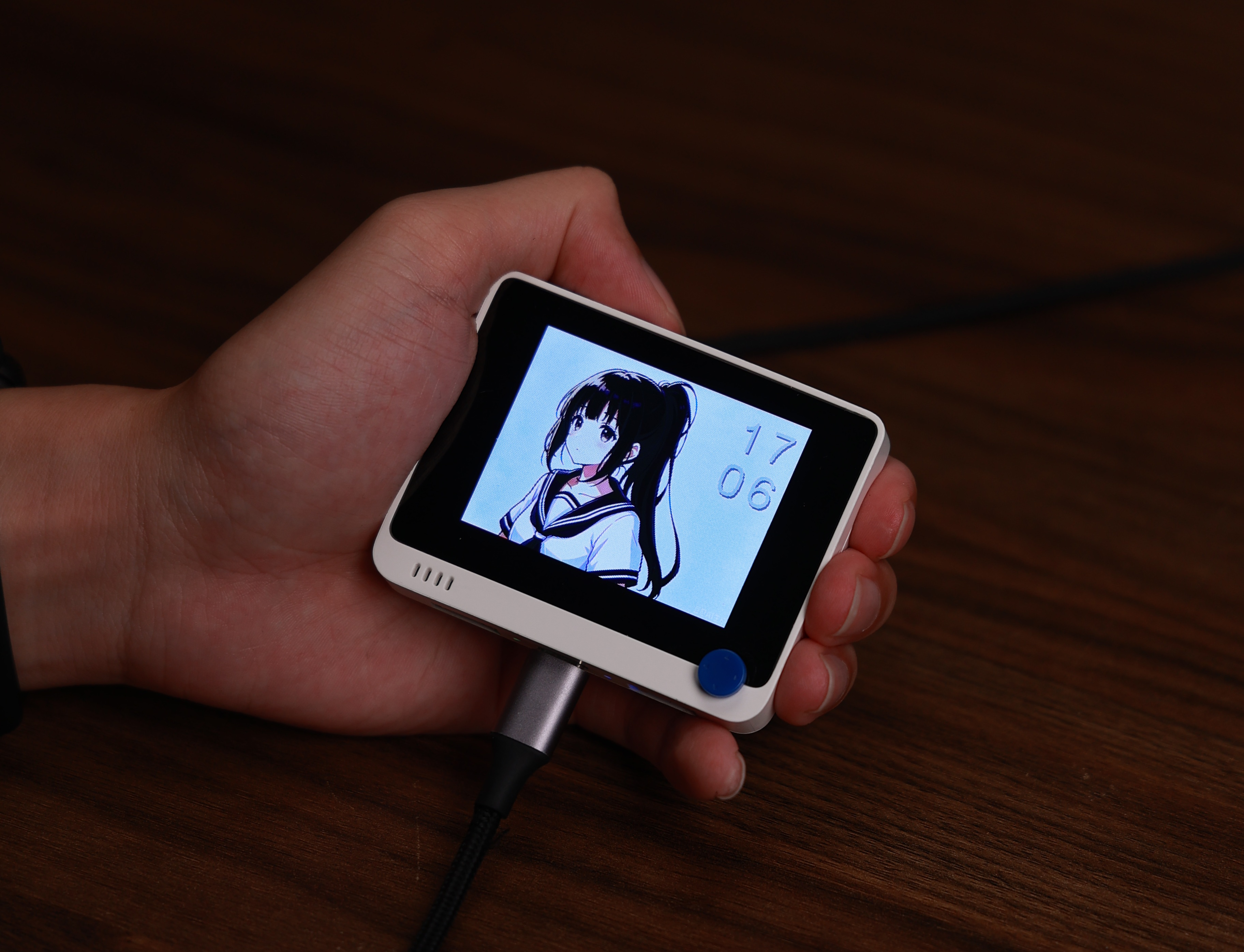

5. Design a Custom Anime Desktop Clock
- Hardware: Wio Terminal
- Difficulty: ★★☆☆☆
- Best for: Personalized displays and connected clocks
- You will explore: Wi-Fi, NTP time synchronization, image assets, buttons, and screen composition
This project turns Wio Terminal into a network-connected wallpaper clock. It places the time over a full-screen image, synchronizes the clock over NTP, and supports a button-triggered refresh. A companion image workflow lets users turn their own artwork into a firmware-ready background.
The most valuable lesson is not the clock itself but the combination of online data and local presentation. The same pattern can become a class timetable, Pomodoro timer, event countdown, or family status display.
View the Anime Desktop Clock application

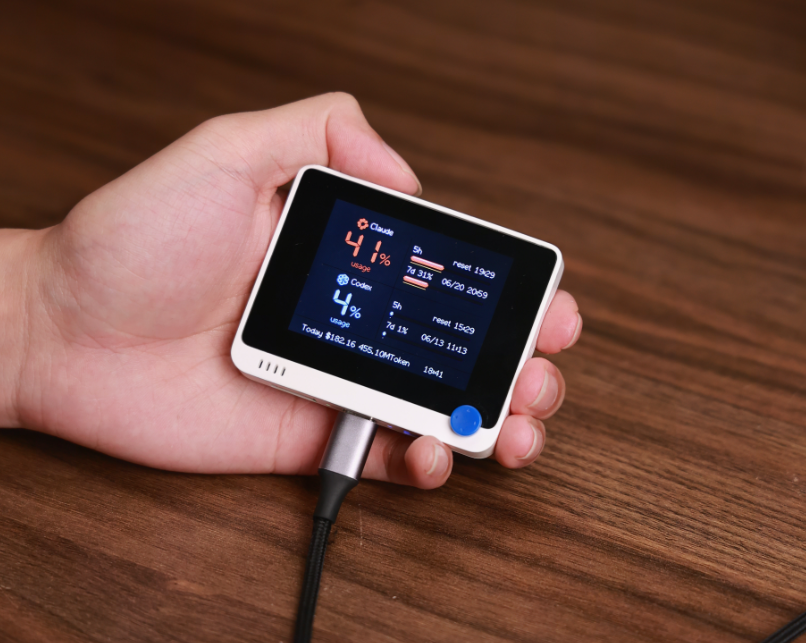

6. Build an AI Usage Dashboard
- Hardware: Wio Terminal
- Difficulty: ★★★☆☆
- Best for: Makers interested in APIs, local data, and dashboards
- You will explore: BLE communication, data parsing, usage metrics, cost calculations, and dashboard design
The Wio Terminal AI Token Dashboard displays usage information for AI coding services on a dedicated hardware screen. The current project retrieves usage data from locally logged-in accounts, calculates estimated daily API costs, and sends the results to Wio Terminal over Bluetooth Low Energy. A local web preview helps verify the data before it reaches the device.
This is a useful pattern for many monitoring projects. Replace AI usage with home energy data, server status, sales alerts, lab measurements, or any other metric that deserves an always-visible display.
View the Wio Terminal AI Token Dashboard

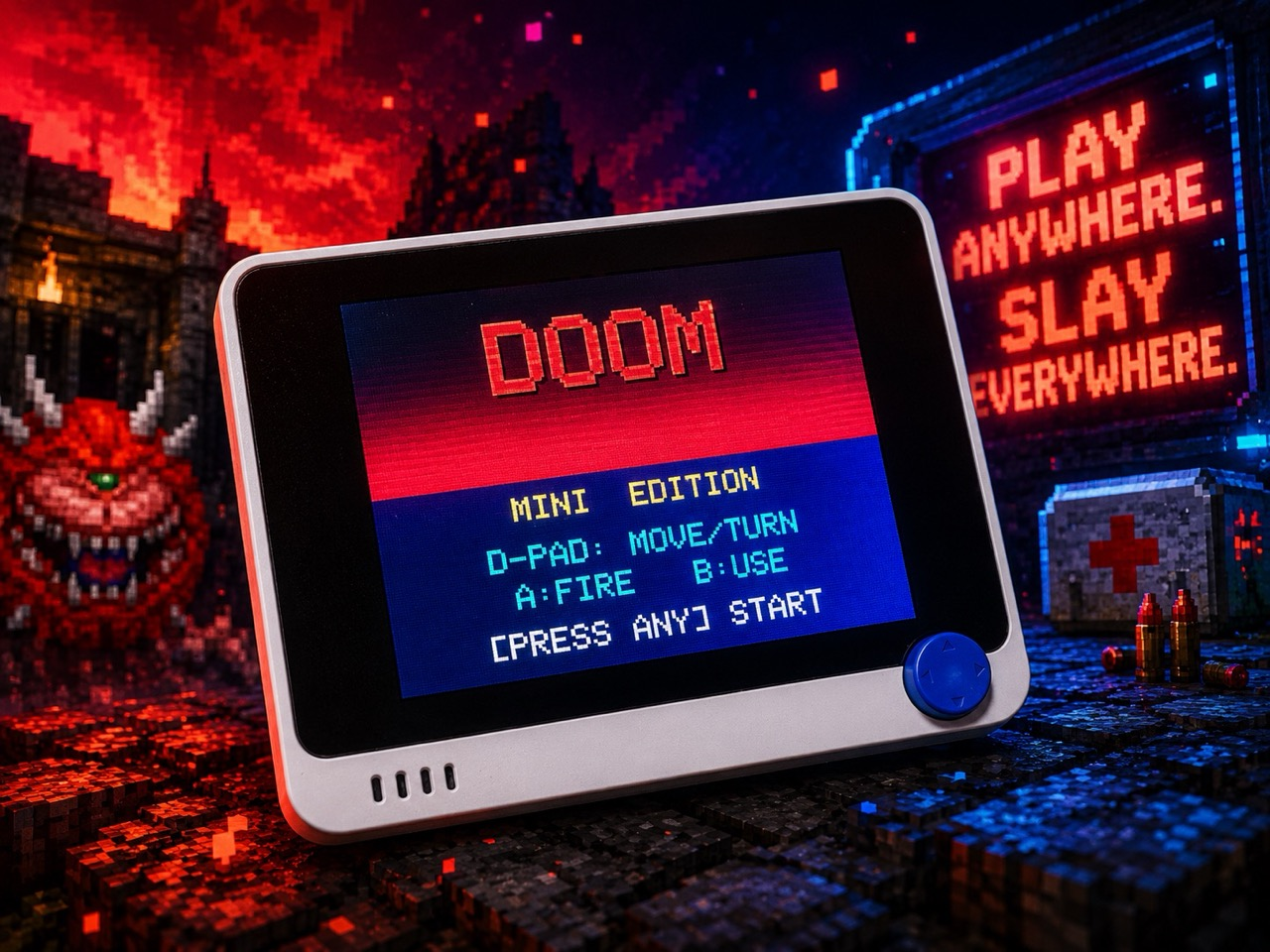

7. Run DOOM on Wio Terminal
- Hardware: Wio Terminal
- Difficulty: ★★★★☆
- Best for: Advanced makers exploring ports and constrained hardware
- You will explore: Existing codebases, memory limits, controls, rendering, and performance optimization
Porting a classic game is very different from generating a small program from scratch. The project must adapt existing behavior to the device's display, input controls, memory, and processor. That makes DOOM an ambitious challenge—but also a memorable demonstration of how far a compact device can be pushed.
Treat this as a learning reference rather than a first build. Start with the Snake or Tetris project, become familiar with display and input logic, and then examine how a larger application handles assets, controls, and performance constraints.

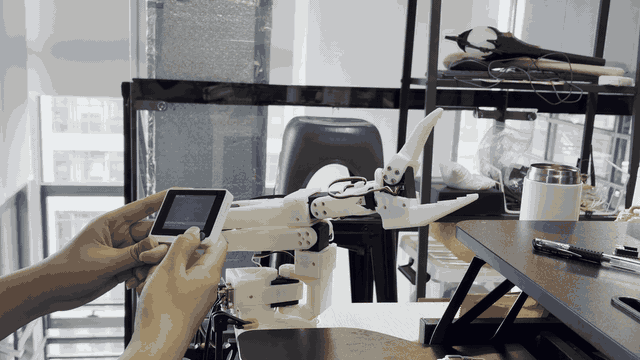

8. Turn Wio Terminal into a Robotic Arm Controller
- Hardware: Wio Terminal and a compatible robotic arm
- Difficulty: ★★★★☆
- Best for: Robotics control and interactive prototypes
- You will explore: Control interfaces, command mapping, communication, and physical testing
A robotic arm controller brings the hardware-coding loop into the physical world. Buttons, switches, or other inputs on Wio Terminal can be mapped to arm movements, turning the device into a portable control panel.
Unlike a screen-only project, every command must be tested against real motion. Start with conservative movement ranges, verify one joint or action at a time, and include a clear stop behavior. Once the fundamentals work, the same interface can be expanded with saved positions, repeated motion sequences, or task presets.
View the Affordable Robotic Arm Controller
Quick Comparison: Which AI Hardware Project Should You Build First?
| Project | Hardware | Difficulty | Focus |
|---|---|---|---|
| Snake Game | Wio Terminal | ★☆☆☆☆ | Buttons, displays, and simple game logic |
| Tetris Game | Wio Terminal | ★★☆☆☆ | Structured logic and screen updates |
| Desktop Weather Station | Grove Beginner Kit | ★★☆☆☆ | Sensors, alerts, and environmental data |
| Blinking Cyber Eye | XIAO ESP32S3 + OLED | ★★☆☆☆ | Wearables and animation |
| Anime Desktop Clock | Wio Terminal | ★★☆☆☆ | Wi-Fi, time data, and personalized displays |
| AI Usage Dashboard | Wio Terminal | ★★★☆☆ | BLE, data parsing, and monitoring |
| DOOM Port | Wio Terminal | ★★★★☆ | Optimization and larger codebases |
| Robotic Arm Controller | Wio Terminal + arm | ★★★★☆ | Robotics and physical control |
If you are completely new, start with Snake. Choose the weather station if you want to understand sensors, or the Cyber Eye if creative electronics motivate you more than data. The best beginner hardware project is the one that gives you a visible result quickly enough to make you curious about the next improvement.
How to Get Better Results from an AI Hardware Coding Assistant
AI makes the first draft faster, but clear instructions and careful testing still matter. These habits improve both the generated code and your learning:
Name the Exact Hardware
Include the board, sensor, display, and connection details in your prompt. “Build a weather station” is vague. “Build a weather station for Grove Beginner Kit that shows temperature and humidity on the OLED and sounds an alert above a chosen threshold” gives the assistant a much clearer target.
Build One Working Behavior at a Time
Start with the smallest observable result. Read one sensor before designing an entire dashboard. Move one robotic joint before adding saved sequences. A working foundation is easier to expand than a large project with several unknown failures.
Ask the AI to Explain Important Sections
Generated code should not be a black box. Ask what each function does, why a library is needed, and which values are safe to change. This turns a fast build into a reusable learning experience.
Test on the Real Device
Successful compilation does not guarantee that wiring, timing, sensor calibration, power, or physical motion is correct. Upload early, observe the result, and describe the actual behavior when asking for the next change.
Save and Share the Working Version
Once the project works, document the hardware list, prompt, behavior, and any changes you made. Sharing through SenseCraft App Square gives other makers a useful starting point—and gives you a stable version to revisit later.
Frequently Asked Questions
Can beginners build hardware projects with AI coding?
Yes. AI coding can reduce the time spent writing boilerplate code and configuring a local development environment. Beginners still need to connect hardware correctly, test the result, and understand basic safety and power requirements. Projects with an integrated screen or sensor kit are usually the easiest starting point.
Do I need to install Arduino IDE to use CodeCraft?
CodeCraft is browser-based and provides cloud compilation and one-click upload for supported hardware, so its core workflow does not require a local Arduino IDE installation. Advanced developers may still choose local tools for workflows or devices outside the supported path.
Is an “AI hardware project” the same as running AI on the device?
Not always. In this article, AI also refers to using an AI coding assistant to create a hardware project. Some projects may run TinyML or another AI model on the device, while others use AI during development to generate and refine conventional embedded code.
What hardware does CodeCraft currently support?
The current public CodeCraft site highlights deep integration with Wio Terminal, XIAO ESP32S3 Sense, and Grove Beginner Kit, together with a growing range of Grove sensors, displays, relays, and other modules. Check the CodeCraft homepage for the latest supported-hardware list before starting a project.
Is CodeCraft free?
CodeCraft offers a free tier with a limited quota, as well as Pro and Max subscriptions. Current plan details are available on the CodeCraft pricing page.
Can schools use these projects in class?
Yes. CodeCraft's education solution combines software, Seeed Studio hardware, curriculum resources, class licensing, seat management, and technical support. Educators can begin with a short guided project and progress toward sensor, IoT, interactive-display, or AI hardware courses.
Final Thoughts: Start with an Idea You Can See Working
The most satisfying hardware projects respond in the real world: a character moves, a sensor changes, a display updates, or a robotic arm follows a command. AI coding does not remove the experimentation that makes hardware fun. It removes some of the setup friction between an idea and the first working result.
Choose one project from this list, simplify it to a single core behavior, and describe that behavior clearly. Once it works, add one improvement at a time. That is how a five-minute experiment becomes a project you genuinely understand and want to share.
Start building with CodeCraft Explore more working examples in the SenseCraft App Square, or review CodeCraft plans.
