Maker AI brings generative AI into the workshop—not as a replacement for making, but as a way to turn a clearly described idea into a first hardware program that can be tested on a real device. The useful question is not whether AI can produce code. It is whether a maker can define the behavior, observe the result, find what is wrong, and improve the build.
This guide uses four published CodeCraft applications to show a practical progression: start with an LED output, add physical input and sound, design an animated wearable display, then manage touch interaction and game state. Each project is a real example from the SenseCraft application library.
Quick answer: Maker AI is most useful when it shortens the path from an idea to a testable prototype while the maker remains responsible for the design, hardware choices, verification, and final code.
What Does “Maker AI” Mean?
In this article, Maker AI means using AI-assisted tools during physical computing and hardware prototyping. A maker describes an intended behavior, generates or revises code with AI, deploys it to supported hardware, then tests the result in the physical world.
This is different from embedded AI:
- AI-assisted making: AI helps create, explain, or modify the software used in a hardware project.
- Embedded AI: an AI model runs as part of the finished device, such as a vision model classifying camera images.
The four projects below demonstrate AI-assisted making. Their published descriptions do not establish that machine-learning models run inside the finished devices, so they should not be presented as embedded-AI applications.
CodeCraft is a browser-based, hardware-focused AI coding assistant. Its current product page describes AI code generation, cloud compilation, upload support, and a library of community applications. The practical workflow is:
Describe the behavior → generate a first version → compile → upload → observe the device → revise
Compilation is only one checkpoint. A compiled program can still contain incorrect assumptions about pins, screen dimensions, timing, input direction, libraries, or user interaction.
A Four-Level Maker AI Project Path
The projects are arranged by system complexity rather than promotional value. Each level introduces a new design problem while retaining skills from the previous level.
Level 1: Scrolling Text Display
The Scrolling Text Display continuously shows “CodeCraft” on an 8×8 RGB LED matrix. It is an output-focused project: the main task is translating text into a sequence of pixel patterns and moving those patterns across a small display.
What the project demonstrates
- Representing letters with an 8×8 pixel grid
- Exploring arrays or lookup tables as possible ways to store patterns
- Updating a display at a readable interval
- Separating content, position, and animation timing
A useful success test
The text should remain recognizable, move in the intended direction, and scroll at a stable speed without visible random pixels. Test at several speeds rather than assuming the first delay value is readable.
How to extend it
Ask CodeCraft to support a second phrase, adjustable speed, or a pause between messages. Make one change at a time and compare it with the last working version. Arduino’s official Built-in Examples include control-structure, timing, string, and LED-matrix references that can help makers understand the building blocks behind generated code.
Level 2: Electronic Wooden Fish
The Electronic Wooden Fish combines a XIAO ESP32S3 hardware input with a browser-based interface. Pressing the connected button sends an event through Web Serial; pressing the spacebar or clicking the on-screen wooden fish can trigger the same browser interaction. The webpage then plays the strike animation and synthesized sound using the Web Audio API. Compared with the scrolling display, it adds an input event and immediate feedback.
What the project demonstrates
- Reading a button or keyboard-style input
- Triggering sound or an animation from an event
- Preventing one press from being counted repeatedly
- Coordinating timing between visual and audio feedback
A useful success test
One deliberate press should produce one complete response. Hold the input down, tap it quickly, and repeat it several times. If the project triggers multiple unintended responses, the input logic may need state-change detection or debouncing.
How to extend it
Add a visible count, a short cooldown, or two selectable sound patterns. Ask the AI assistant to explain the event-handling logic before accepting the change. Arduino’s official examples include button wiring, debouncing, state-change detection, and tone generation, making them a useful independent reference for checking the generated approach.

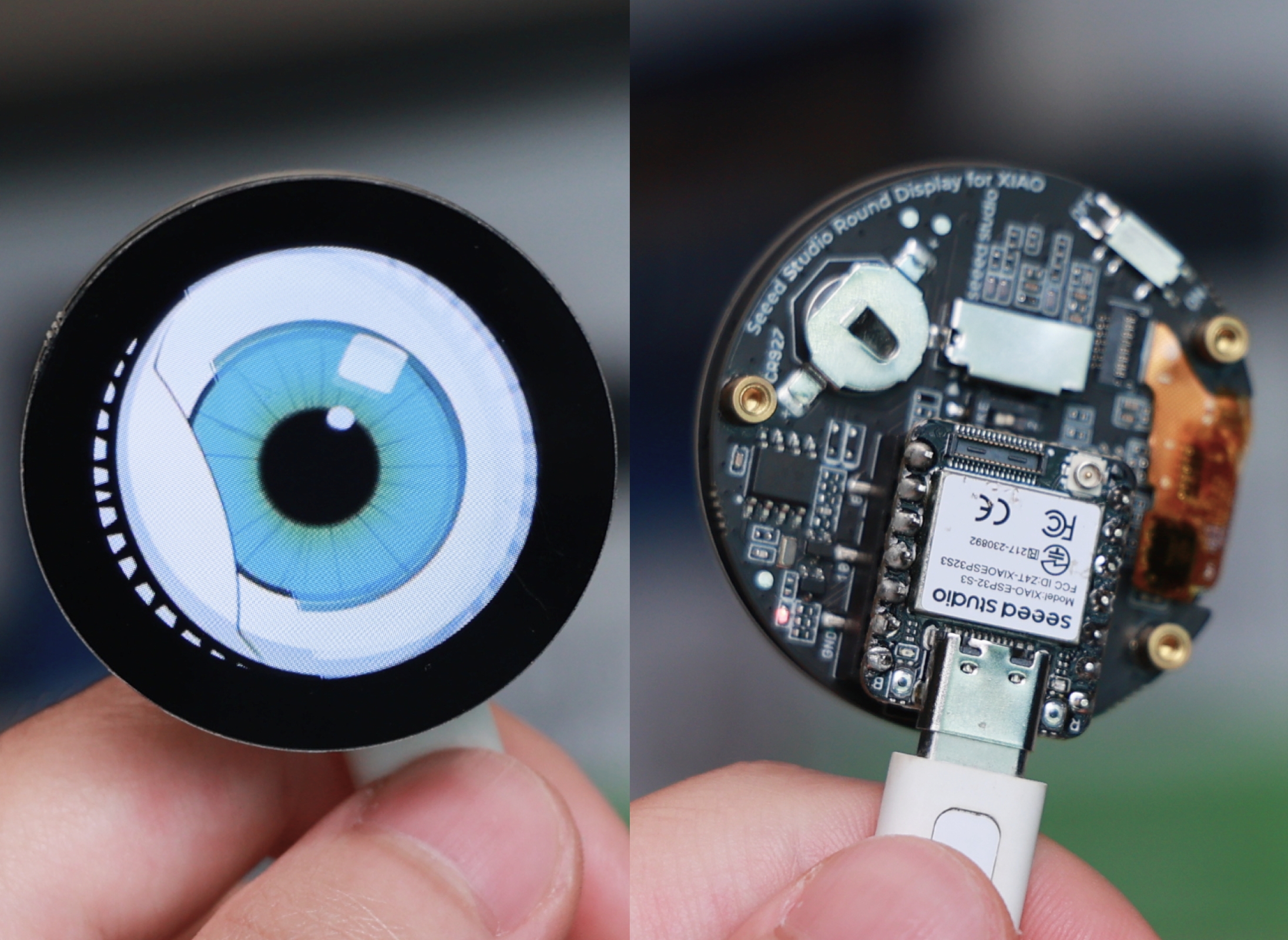

Level 3: Blinking Cyber Eye
The Blinking Cyber Eye uses a XIAO ESP32S3 and a 1.28-inch Round Display for XIAO to simulate a blinking eye. The published project description presents it as a wearable accessory that can be attached to a backpack, worn on the chest, or used as a keychain.
What the project demonstrates
- Drawing animation frames on a round display
- Exploring variable timing as one possible way to make motion feel less mechanical
- Designing an interface around a specific screen shape
- Considering enclosure, mounting, power, and visibility as part of the build
A useful success test
The eye should animate without clipping, obvious flicker, or long pauses that look like a frozen screen. Test the device in its intended orientation and lighting. If battery operation matters, measure actual runtime under the chosen brightness and animation settings rather than relying on a general low-power description.
How to extend it
Add two expressions, a brightness setting, or a button that changes the animation mode. Keep the first version deterministic; random timing can be added after the basic frame sequence works reliably.

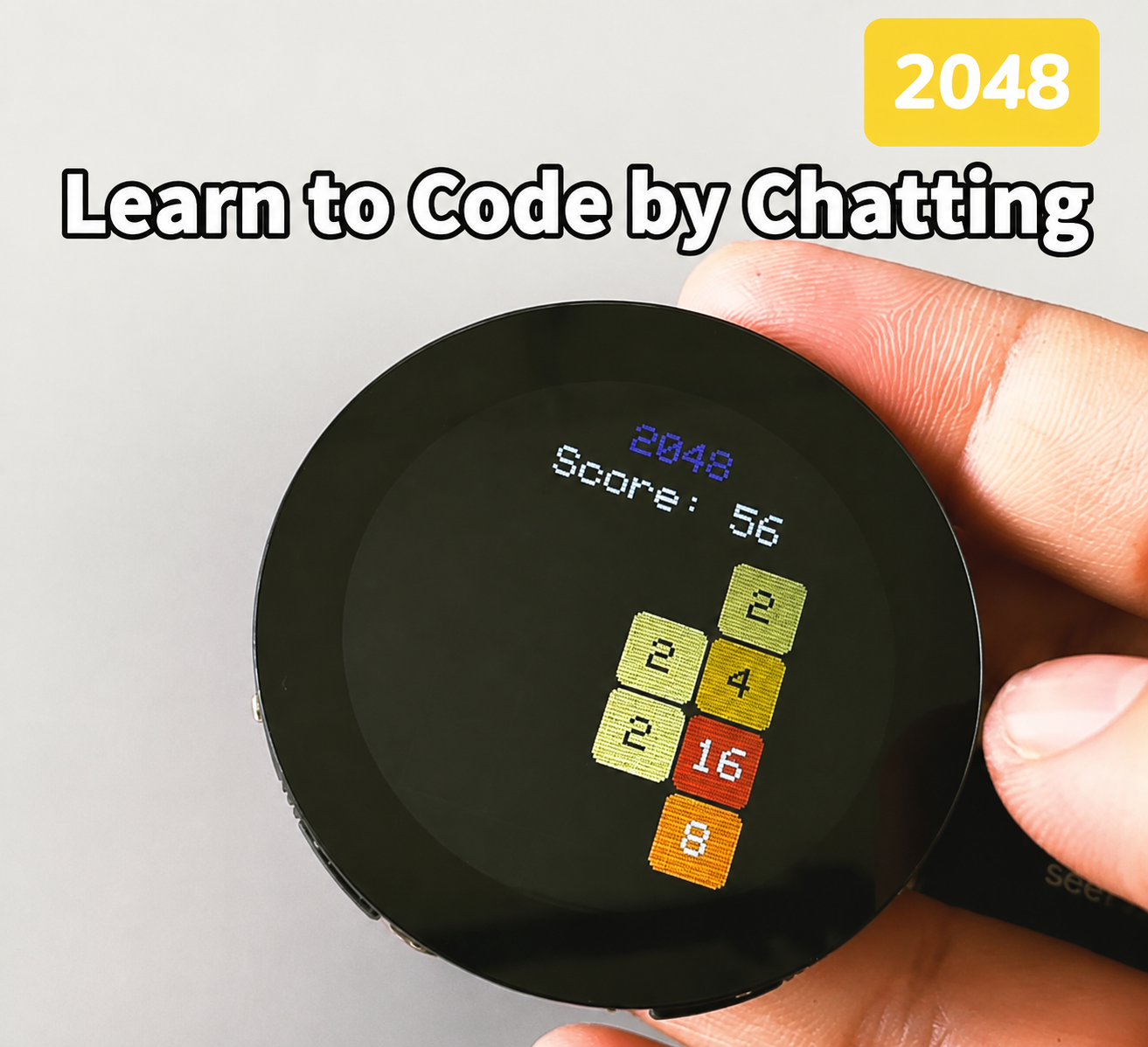

Level 4: 2048 on a Touchscreen
2048 on a Touchscreen runs the familiar number-merging game on a XIAO ESP32S3 round touch display. Players swipe to move tiles and combine matching values. This project introduces continuous touch input, game state, rules, rendering, and restart behavior in one system.
What the project demonstrates
- Reading touch coordinates and recognizing swipe direction
- Representing a board as a grid or array
- Applying movement and merge rules consistently
- Redrawing only after the state changes
- Detecting winning, losing, and restart conditions
A useful success test
Each swipe should move the board once in the intended direction. A tile must not merge more than once during the same move, a new tile should appear only after a valid move, and the game should detect when no legal moves remain.
How to extend it
Add score tracking, a restart control, or a short movement animation only after the core rules pass a written test list. This is where AI-generated code benefits most from explicit examples: describe a board state, the swipe direction, and the exact expected board after the move.
How to Write a Better Maker AI Prompt
A vague prompt asks the tool to make design decisions that the maker has not yet considered. A useful prompt defines five items:
- Hardware: exact board, display, sensors, controls, and connected modules.
- Input: what the user or sensor provides.
- Behavior: what changes, in what order, and under which conditions.
- Output: what should appear, move, sound, or switch.
- Success condition: the observable result that proves the feature works.
For example:
“On an XIAO ESP32S3 round touch display, create a four-by-four 2048 board. Detect left, right, up, and down swipes. Merge equal neighboring tiles once per move, add a new tile only after a valid move, display the score, and provide a restart button when no moves remain.”
The prompt does not guarantee correct code, but it creates concrete tests. If a generated version fails, report the observed behavior instead of asking the assistant to “fix everything.”
A Reliable Build-and-Review Workflow
1. Start with the smallest observable output
Before building the complete experience, confirm that the correct board can drive one pixel, draw one shape, read one input, or play one sound.
2. Read the generated structure
Identify initialization, the main loop, input handling, state variables, and output functions. Use the Arduino reference examples when a behavior is unfamiliar. AI assistance should make code easier to inspect, not invisible.
3. Compile and upload
CodeCraft’s current official page describes cloud compilation and upload for supported hardware. A successful upload confirms that the toolchain accepted the program; it does not confirm that the physical interaction is correct.
4. Test normal and edge conditions
For every feature, record one expected case and at least one edge case. Examples include a long button press, a very short swipe, an empty message, a device restart, or a display brightness change.
5. Change one variable at a time
If timing, input detection, and rendering are changed together, it becomes difficult to know which change fixed or introduced a problem. Preserve the last working version.
6. Document what was actually tested
List the board version, connected modules, firmware date, successful behaviors, and known limitations. This is more useful to other makers than saying a project “works perfectly.”
How to Choose a Maker AI Project
- Choose the Scrolling Text Display if you want to learn pixel mapping, arrays, and animation timing.
- Choose the Electronic Wooden Fish if you want to learn event handling and synchronized feedback.
- Choose the Blinking Cyber Eye if you care about visual character, wearable form, and display animation.
- Choose 2048 on a Touchscreen if you want a larger software challenge involving gestures, rules, and persistent state.
Pick the smallest project that teaches the next skill you need. Adding more hardware does not automatically create a better learning experience or a stronger prototype.
Responsible Use, Safety, and Sharing
- Review generated pin assignments and voltage requirements against official hardware documentation before connecting components.
- Disconnect power before rewiring a prototype.
- Do not publish Wi-Fi credentials, API keys, session tokens, or personal data in code or screenshots.
- Do not assume generated libraries, example assets, fonts, sounds, or game graphics are automatically cleared for reuse.
- When sharing source code, choose a license deliberately. GitHub’s official guide on licensing a repository explains why a public repository without a license does not automatically grant others permission to reuse the work.
The four linked applications are first-party or community project demonstrations hosted in the SenseCraft application library. They demonstrate project concepts and published behaviors; they are not independent evidence that CodeCraft is superior to other development methods or that every generated result will work without revision.
Frequently Asked Questions
Is Maker AI the same as an AI maker?
Not necessarily. “Maker AI” is an ambiguous phrase used for different products and industries. In this guide, it specifically means AI-assisted physical making: using AI to help design and program interactive hardware.
Do Maker AI projects need an AI model on the device?
No. AI may assist during development without running in the final device. If the completed hardware runs a vision, audio, or prediction model, it can also be described as an embedded-AI project.
Can beginners use CodeCraft without understanding code?
A beginner can use natural-language assistance to create a first version, but reliable hardware still requires testing and gradual understanding. Makers should learn what the main functions do, how inputs map to outputs, and how to identify unsafe or incorrect assumptions.
Does generated code always work on the first attempt?
No. Results depend on the prompt, supported hardware, library versions, wiring, and physical conditions. Compile, upload, observe, and revise each project.
Which project should I build first?
Start with the scrolling display if you have not built an interactive hardware project before. Move to input-driven and state-based projects after you can explain how the simpler output loop works.
Start Building with Maker AI
Maker AI is valuable when it helps a person move from intention to evidence: a defined behavior, a real prototype, a test result, and an informed revision. The maker still supplies the judgment.
Explore the four projects above, choose one skill to practice, and use CodeCraft to create a small first version before expanding the design.
