An ESP32 AI code generator can turn a plain-language project description into a starting program for an ESP32 board. CodeCraft takes this approach further for supported hardware: you select the board, describe the behavior you want, review the generated code, compile it in the cloud, and flash it from the browser. This can shorten the path from an idea to a testable prototype, especially when you are learning embedded programming or exploring a new board.
AI-generated code is still a draft, not a guarantee. Pin assignments, libraries, electrical connections, timing, memory use, and safety behavior must be checked on the actual device. This guide shows a practical CodeCraft workflow, explains where it helps, and uses four SenseCraft Application Gallery projects as inspiration.
Quick answer: To generate ESP32 code with AI in CodeCraft, choose a supported ESP32 device, describe the inputs, outputs, pins, timing, and expected behavior, generate the project, review the code and wiring assumptions, then compile, flash, and test it on real hardware. Iterate with one change at a time.
What Is an ESP32 AI Code Generator?
An AI code generator for ESP32 converts natural-language instructions into embedded code and related project guidance. A useful tool should do more than return a generic code block. It should account for the selected board, available pins, device libraries, sensors, displays, communication interfaces, and the upload workflow.
CodeCraft is a browser-based, hardware-focused AI coding assistant. According to the official CodeCraft quick-start guide, its workflow covers four stages:
- Describe the hardware behavior in natural language.
- Generate code and project documentation.
- Compile and upload the program to supported hardware.
- Share or reuse projects through the SenseCraft AI community.
CodeCraft can reduce setup and boilerplate work, but it does not remove the need to understand the circuit or validate the result.
Why Use CodeCraft to Generate ESP32 Code with AI?
Hardware-aware project context
CodeCraft asks you to select the target hardware before generation. This gives the assistant clearer context for board capabilities, pins, peripherals, and libraries than a prompt containing only the word “ESP32.” You should still verify every assignment against the board documentation.
Browser-based workflow
The platform runs in a browser and provides cloud compilation. For supported devices and browsers, the generated project can be connected and flashed from the workspace. This avoids setting up a complete local toolchain for an early prototype.
Conversational iteration
You can refine a project with follow-up instructions, such as changing a refresh interval, adding serial output, or defining behavior when a sensor reading fails. Small, explicit iterations are easier to test than asking the model to redesign the whole project at once.
Reusable project examples
The SenseCraft AI Application Gallery contains official and community-published projects. Depending on each project’s permissions, users may be able to inspect, clone, adapt, or deploy it. The publishing guide also requires creators to identify hardware and test firmware before publishing.
Free entry option
CodeCraft currently lists a Free plan with basic AI creation capabilities. Quotas, plan features, and promotional terms can change, so check the current pricing page before relying on a particular allowance.
CodeCraft, a General AI Assistant, or a Local IDE?
These options solve different parts of the development process.
- CodeCraft: suited to supported hardware prototypes and learning. It combines hardware-focused generation, cloud compilation, browser-based flashing, and community examples. Hardware support and generated output still require verification.
- General AI assistant: useful for explanations, debugging ideas, and broad code drafts, but board, pin, library, and toolchain context may need to be supplied manually.
- Arduino IDE or another local toolchain: provides direct control over libraries, source files, build settings, and diagnostics, but requires installation and configuration.
CodeCraft does not need to replace a local IDE. A practical workflow is to use it for generation and early iteration, then move to a local toolchain when you need deeper debugging, custom build settings, version-controlled dependencies, or production validation.
How to Generate ESP32 Code with AI in CodeCraft
1. Define one testable outcome
Start with a result you can observe, such as showing text on a display, reading a button or touch input, animating a graphic, capturing a camera frame, or printing status and error messages to the serial monitor. Avoid beginning with “build a complete smart device.” Large prompts hide assumptions and make faults harder to isolate.
2. Select the exact board
Choose the board in CodeCraft before writing the prompt. “ESP32” describes a family, not one pin-compatible device. An ESP32-S3 board with a camera is different from a basic ESP32 development board.
For camera, audio, and compact connected-device experiments, one supported option is Seeed Studio XIAO ESP32S3 Sense. The official product page lists an ESP32-S3 dual-core processor, 2.4 GHz Wi-Fi and Bluetooth Low Energy connectivity, 8 MB PSRAM, 8 MB flash, plus a camera sensor, digital microphone, and microSD card slot through the Sense expansion board. Buy hardware based on project requirements—not because every ESP32 example needs these features.
3. Write a hardware-specific prompt
A strong prompt names the device, components, connections, behavior, and validation output.
Weak prompt: “Make an ESP32 display project.”
Better prompt: “Create a project for my selected ESP32 board. Display the text ‘Hello Maker’ and scroll it from right to left. Refresh the display every 40 ms. Print initialization status and any display error to the serial monitor at 115200 baud. Keep pin assignments in named constants and explain any library assumptions before generating the code.”
If you know the display controller, interface, I2C address, SPI pins, or module name, include them. Never ask the model to guess wiring that you can specify.
4. Review before compiling
Check the selected board and processor variant, pin numbers, supply and signal voltage, required libraries, I2C addresses or SPI chip-select pins, memory use, secrets, timeouts, and failure behavior. Do not place private Wi-Fi passwords, API tokens, or personal data in a public project.
5. Compile and fix one error at a time
Use the compiler output as evidence. Paste the exact error into the conversation and ask for the smallest correction. Confirm that the fix does not silently change the board, library, or feature requirements.
6. Flash and test on real hardware
Connect the device with a data-capable USB cable, select the correct serial port, flash the program, and observe both the physical output and serial logs. The official CodeCraft creation guide follows the same generate-review-flash-debug cycle.
7. Iterate with measurable changes
Useful follow-up prompts include changing an update interval, adding a timeout, moving pin definitions to constants, or asking for the memory impact before adding an image asset. Test after each change so you know which revision introduced a problem.
Four Gallery Project Ideas to Explore with an ESP32 AI Code Generator
The following gallery entries are useful as design references for input handling, displays, state changes, and visual feedback. They are community or gallery examples, not independent benchmarks of CodeCraft accuracy. Open each page and confirm its listed hardware, files, license, and deployment instructions before cloning or adapting it.

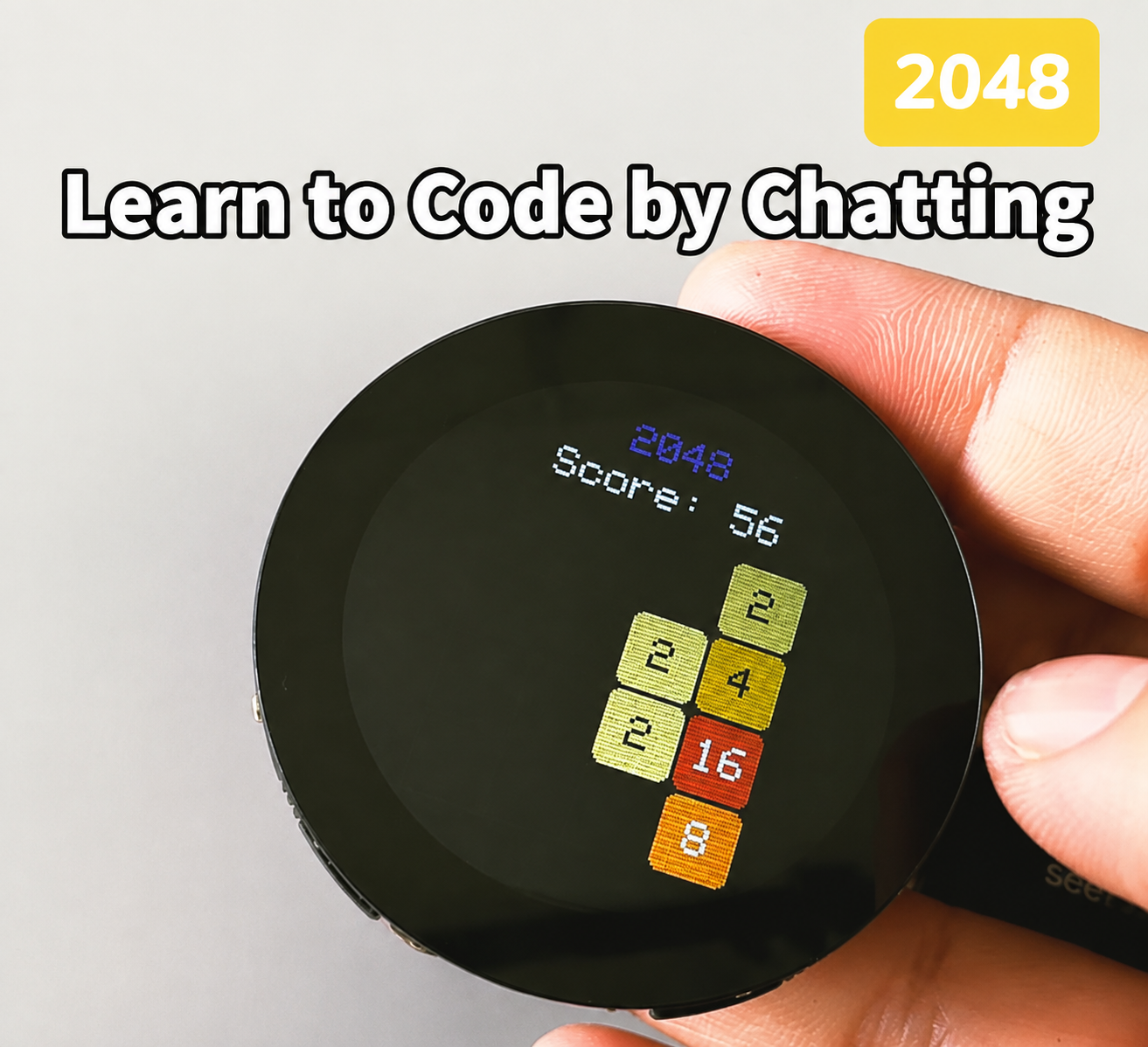

1. 2048 on a Touchscreen
2048 on a Touchscreen is a useful reference for projects combining a graphical interface, touch input, game state, and repeated screen updates. Study how touch events map to actions, how the display redraws after a state change, and how invalid moves are handled. When adapting it, specify the exact touch controller and display module.
2. Electronic Wooden Fish
Electronic Wooden Fish shows how a simple interaction can become a focused maker project. It can be studied for event-driven input, counters, timing, debounce behavior, and synchronized feedback when those components appear in the project definition. Verify the bill of materials and never assume an actuator or audio component is safe to drive directly from a GPIO pin.
3. Scrolling Text Display
Scrolling Text Display is a practical reference for text rendering and timed animation. Study text width, starting position, frame timing, display redraw, and long-string handling. In your prompt, include the display resolution, controller, interface, font size, scroll direction, and update interval.

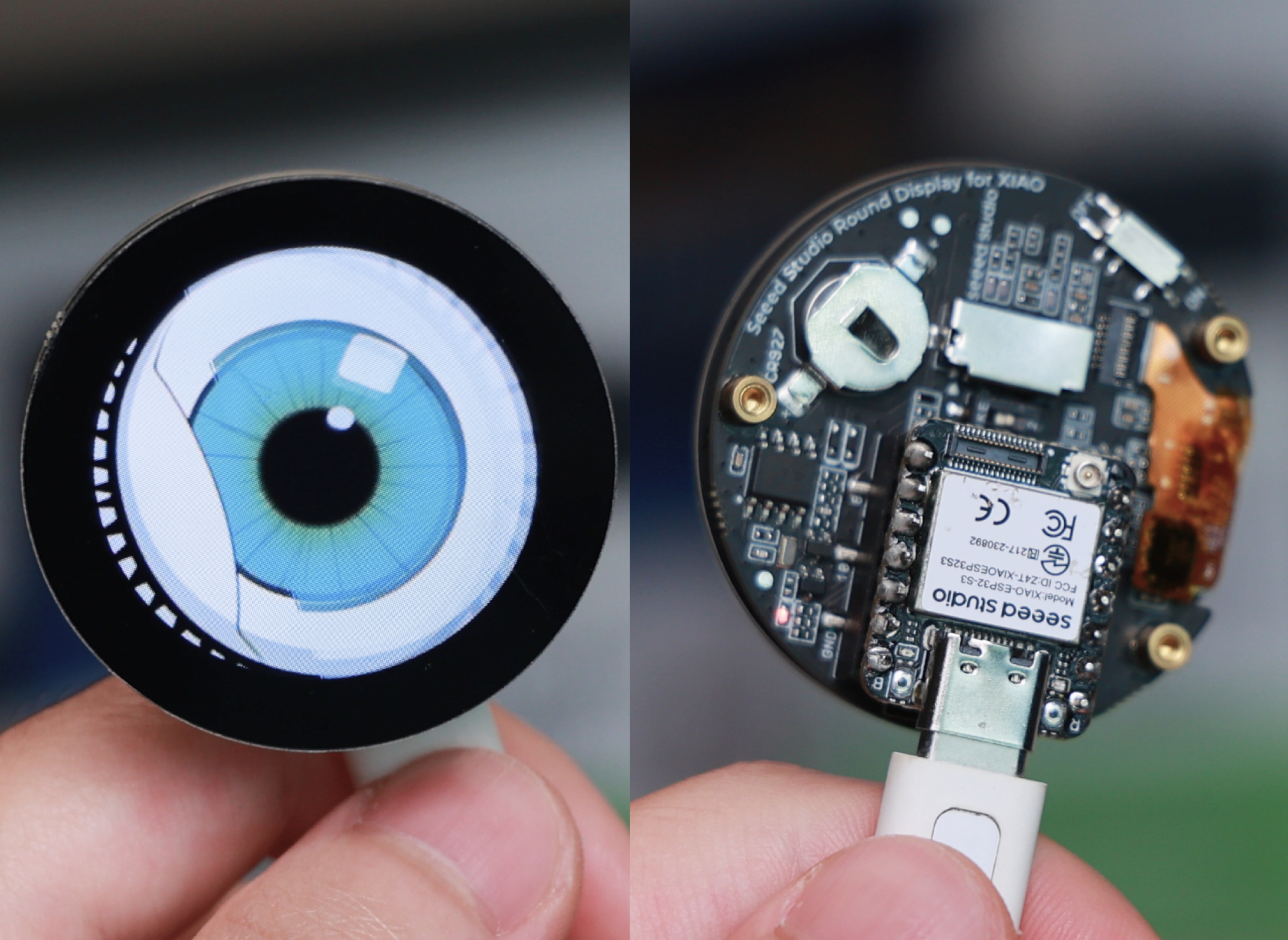

4. Flashing Cyber Eye
Flashing Cyber Eye provides inspiration for animated visual effects and repeated state transitions. Study frame sequencing, non-blocking animation timing, brightness or contrast, and separation of animation data from control logic. If the project drives LEDs or an external load, verify current requirements and use an appropriate driver circuit where needed.
A Reusable Prompt Template for ESP32 Projects
Create code for [exact ESP32 board] using [framework or supported CodeCraft environment]. The connected components are [part names], wired as follows: [pins, interface, voltage, address]. The device should [observable behavior]. Use [timing or threshold]. Print [diagnostic information] to the serial monitor at [baud rate]. Add initialization checks, a timeout, and a safe fallback if [sensor/network/display] fails. Keep credentials out of the source. Before generating code, list your assumptions and required libraries.
This structure does not guarantee correct code, but it reduces ambiguity and makes review easier.
What an ESP32 AI Code Generator Cannot Verify for You
AI-generated code can be syntactically valid and still be wrong for the circuit. CodeCraft cannot independently verify wiring, module voltage, GPIO current, library versions, Wi-Fi reliability, long-run memory stability, or safe failure behavior.
For motors, heaters, relays, batteries, mains electricity, moving mechanisms, or other higher-risk loads, use proper protection and supervision. Do not use generated output as the sole control for a safety-critical system.
Frequently Asked Questions
Can AI generate working ESP32 code?
It can generate a useful starting point, and simple projects may compile with little revision. However, “working” depends on the exact board, wiring, libraries, component versions, and environment. Review, compile, and test every project on the real device.
Does CodeCraft support ESP32?
CodeCraft’s official documentation includes an ESP32 LED example and lists XIAO ESP32S3 Sense among its supported hardware. Support can vary by board and feature, so confirm that the exact device appears in the current workspace before starting.
Is CodeCraft free to try?
CodeCraft currently lists a Free plan with basic AI creation capabilities. Check the current pricing page for usage limits and plan details.
Do I need to install the Arduino IDE?
Not for CodeCraft’s browser-based generation, cloud compilation, and supported flashing workflow. A local IDE remains useful for advanced debugging, custom libraries, offline development, and greater control over the build process.
Can I use XIAO ESP32S3 Sense for every gallery example?
Not automatically. Each gallery application may target different hardware. Check its application page, bill of materials, firmware target, and license. If you port a project, update pins, libraries, peripherals, assets, and memory assumptions, then test the port from the beginning.
Start with One Observable Feature
The most reliable way to use an ESP32 AI code generator is to keep the first version small: select the exact board, describe one observable behavior, expose assumptions, compile, flash, and test. CodeCraft brings those steps into a hardware-focused browser workflow and provides gallery projects that can help you move from a blank prompt to a concrete design.
Try CodeCraft with a simple ESP32 task, or review the XIAO ESP32S3 Sense if your project needs a compact ESP32-S3 board with camera and microphone capabilities. Treat generated code as a draft, validate it against official hardware documentation, and make each iteration measurable.
