Football Player Tracking Analysis Using reComputer RK3576

Leverage reComputer RK3576 RGA 2D hardware acceleration and VPU MPP acceleration. Run the YOLOv8n model to detect football players and achieve real-time analysis.

reComputer-RKrk3576yolotrackingfootballGithub

reComputer RK3576 Football Player Tracking Analysis

An intelligent football field analysis project based on RK3576 / RKNN / MPP / RGA / ZLMediaKit.

You can view the source code of the project at this link: https://github.com/litxaohu/football_project

Alternatively, you can download the compiled version to run the project locally on your reComputer RK3576:

note: This project has low memory requirements, but high CPU usage. Optimization of CPU usage will be considered in the future.

bash
wget -O rk3576_football_demo-linux-aarch64.tar.gz https://github.com/litxaohu/football_project/releases/download/v1.0.0/rk3576_football_demo-linux-aarch64.tar.gz
tar -xzvf rk3576_football_demo-linux-aarch64.tar.gz

cd install
export LD_LIBRARY_PATH="$(pwd)/lib:${LD_LIBRARY_PATH}"

You can upload local videos to the device for analysis and processing, or add an RTSP video source for real-time analysis:

Local Video Analysis:

bash
sudo ./bin/rk3576_football_demo \
  --source localvideo \
  --localvideo ./video/football.mp4 \ #Change it to the local path of your video file
  --model model/yolov8n_rk3576.rknn \
  --output-width 1280 \
  --output-height 720 \
  --fps 30 \
  --http-port 8000 \
  --streams ai \
  --ai-conf-threshold 0.25

RTSP Video Analysis:

bash
sudo ./bin/rk3576_football_demo \
  --source rtsp \
  --rtsp-input-url "rtsp://192.168.100.101:554/live" \
  --rtsp-username admin \
  --rtsp-password 123456 \
  --model model/yolov8n_rk3576.rknn \
  --output-width 1280 \
  --output-height 720 \
  --fps 30 \
  --http-port 8000 \
  --streams ai \
  --ai-conf-threshold 0.25

Preview:

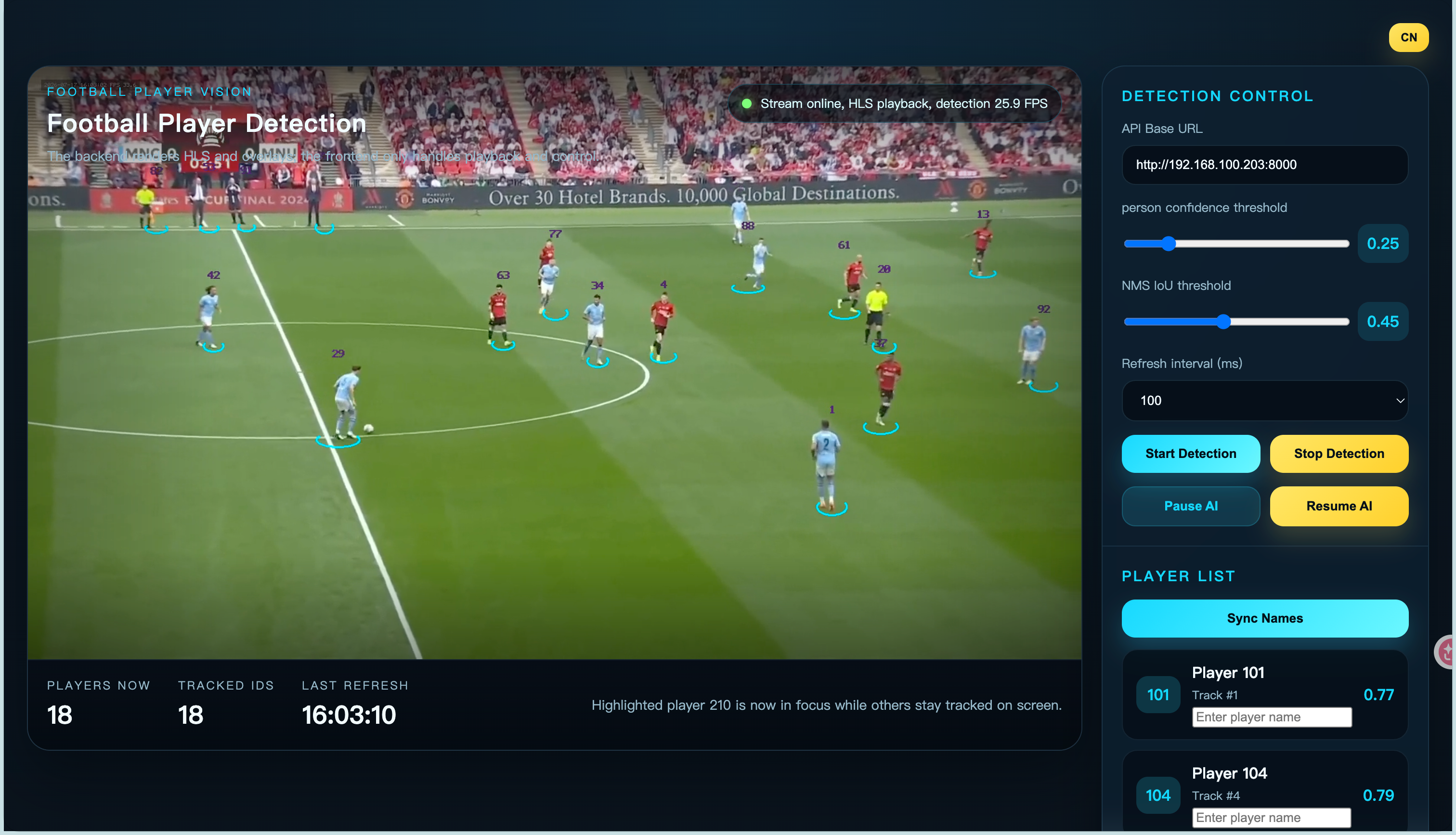

  • page entry http://<board-ip>:8000/

Project Features

Current Capabilities

  • Input sources:
    • v4l2
    • rtsp
    • localvideo
  • Output streams:
    • main stream rtsp://<board-ip>:8554/live/camera
    • sub stream rtsp://<board-ip>:8554/live/camera_sub
    • AI debug stream rtsp://<board-ip>:8554/live/camera_ai
  • Web:
    • page entry http://<board-ip>:8000/
    • HLS status endpoint /api/hls/status
    • HLS playlist /api/hls/playlist.m3u8
    • live detection endpoint /api/live_state
  • AI:
    • fixed NPU input 640x640
    • default detection target person
    • --enable-ball enables ball output
    • --ball-trail enables ball trajectory drawing on the AI debug stream
  • Tracking:
    • stable track_id output
    • JSON returns track_id, appear_frames, first_seen_sec, last_seen_sec

Web Playback

Currently using:

  • protocol: HLS
  • codec: H.264
  • frame rate: 30 FPS
  • resolution: 1280x720

Build and Run

GitHub CI and Release Packaging

This repository includes a GitHub Actions workflow that will:

  • build the project automatically on push or pull request
  • run the same build script used locally: ./scripts/build-linux.sh
  • produce a release archive for Linux/aarch64 under dist/
  • publish the archive as a GitHub release when a tag such as v1.0.0 is pushed

To use it:

  1. Create a GitHub repository and push the project there.
  2. Add the repository to GitHub Actions.
  3. Push a tag like git tag v1.0.0 && git push origin v1.0.0 to trigger a packaged release.

Dependencies

  • RK3576 board runtime environment
  • RKNN Runtime
  • Rockchip MPP
  • RGA
  • ZLMediaKit
  • FFmpeg

Build

bash
cd rk3576_football_demo
chmod +x scripts/build-linux.sh
./scripts/build-linux.sh

Preparation Before Running

bash
cd install
export LD_LIBRARY_PATH="$(pwd)/lib:${LD_LIBRARY_PATH}"

Model Directory

text
model/
  yolov8n_rk3576.rknn
  yolov8s_rk3576.rknn
  yolov8m_rk3576.rknn

When --model is not explicitly provided, the default model names above are tried automatically.

Startup Examples

RTSP Live Football Analysis + Web

bash
./bin/rk3576_football_demo \
  --source rtsp \
  --rtsp-input-url "rtsp://192.168.100.101:554/live" \
  --rtsp-username admin \
  --rtsp-password 123456 \
  --model model/yolov8n_rk3576.rknn \
  --output-width 1280 \
  --output-height 720 \
  --fps 30 \
  --http-port 8000 \
  --streams main,sub,ai
bash
sudo ./bin/rk3576_football_demo \
  --source localvideo \
  --localvideo ./video/football.mp4 \
  --model model/yolov8n_rk3576.rknn \
  --output-width 1280 \
  --output-height 720 \
  --fps 30 \
  --http-port 8000 \
  --streams ai \
  --ai-conf-threshold 0.15

AI Debug Stream + Web Only

bash
./bin/rk3576_football_demo \
  --source rtsp \
  --rtsp-input-url "rtsp://192.168.100.101:554/live" \
  --rtsp-username admin \
  --rtsp-password 123456 \
  --model model/yolov8n_rk3576.rknn \
  --streams ai \
  --http-port 8000

Enable Ball Detection and Trajectory

bash
./bin/rk3576_football_demo \
  --source rtsp \
  --rtsp-input-url "rtsp://192.168.100.101:554/live" \
  --model model/yolov8n_rk3576.rknn \
  --enable-ball \
  --ball-trail \
  --ball-trail-length 20

Debug Low-Confidence Targets

bash
./bin/rk3576_football_demo \
  --source localvideo \
  --localvideo /home/rk76/CPP_yolov8/video/football.mp4 \
  --model model/yolov8n_rk3576.rknn \
  --streams ai \
  --ai-conf-threshold 0.15 \
  --detail-info

Export NPU Input Frames

bash
./bin/rk3576_football_demo \
  --source localvideo \
  --localvideo /home/rk76/CPP_yolov8/video/football.mp4 \
  --model model/yolov8n_rk3576.rknn \
  --streams ai \
  --dump-ai-input-dir ./debug_ai_input \
  --dump-ai-input-every 30 \
  --detail-info

Show Help

bash
./bin/rk3576_football_demo --help

Web API

Live Status

  • GET /api/live_state

Response example:

json
{
  "success": true,
  "message": "",
  "stream_type": "hls",
  "detect_fps": 28.7,
  "updated_at": 1720851200,
  "source": "live frame",
  "image": {
    "width": 1280,
    "height": 720
  },
  "predictions": [
    {
      "class": "person",
      "confidence": 0.92,
      "track_id": "#12",
      "track_numeric": 12,
      "appear_frames": 35,
      "first_seen_sec": 3,
      "last_seen_sec": 5,
      "box": {
        "x1": 100,
        "y1": 200,
        "x2": 300,
        "y2": 500
      }
    }
  ]
}

HLS Status

  • GET /api/hls/status

HLS Playback

  • GET /api/hls/playlist.m3u8

Upload/File API

  • POST /api/video/upload
  • GET /api/video/list
  • GET /api/video/download/<filename>

Notes:

  • This version prioritizes real-time Web/HLS and live JSON.
  • POST /api/video/analyze and full offline analysis task management are reserved for future extension.

Key Parameters

  • --streams <main,sub,ai>: select which output streams to enable
  • --ai-width <value> / --ai-height <value>: AI debug stream output size
  • --http-host <value>: Web listening address
  • --http-port <value>: Web listening port, default 8000
  • --web-root <path>: static resource root directory
  • --hls-dir <path>: HLS output directory
  • --uploads-dir <path>: uploads directory
  • --results-dir <path>: results directory
  • --enable-ball: enable football detection output
  • --ball-trail: enable ball trajectory drawing
  • --ball-trail-length <value>: number of trajectory points to keep
  • --ai-conf-threshold <value>: AI detection confidence threshold, default 0.25
  • --disable-web: disable built-in Web/HLS service
  • --detail-info: enable detailed logs

Project Structure

text
rk3576_football_demo
├── CMakeLists.txt
├── football_players.html
├── static
│   └── hls.min.js
├── include
│   └── rk3576_yolo_demo
│       ├── ai
│       ├── app
│       ├── branch
│       ├── common
│       ├── tracking
│       └── web
├── src
│   ├── ai
│   ├── app
│   ├── branch
│   ├── common
│   ├── tracking
│   ├── web
│   └── ...
└── third_party

AI Inference Extensions

  • RKNN entry point is in src/ai/yolov8_engine.cpp
  • preprocessing primarily uses RGA
  • detection results are stored in DetectionFrame cache, then matched and merged by the AI branch based on PTS

Logging and Debugging

  • by default, only startup summary is printed
  • detailed runtime logs are enabled with --detail-info
  • logger is in include/rk3576_yolo_demo/common/logger.hpp

Deployment Recommendations

  • for production deployment, configure permissions for /dev/rga, video devices, and related runtime libraries
  • it is recommended to package models, runtime libraries, and config files together with install/
  • RTSP input prefers libavformat; older environments automatically fall back to ffmpeg pipe
  • for long-term stable operation, use systemd or supervisor for process management and restarts

Known Limitations

  • camera_ai bounding box rendering and watermark overlay still incur some CPU overhead
  • e2e is not full end-to-end latency; it only represents internal branch time
  • localvideo currently uses compressed stream reading path, mainly for offline validation and looped inference
